Product Code: 273969

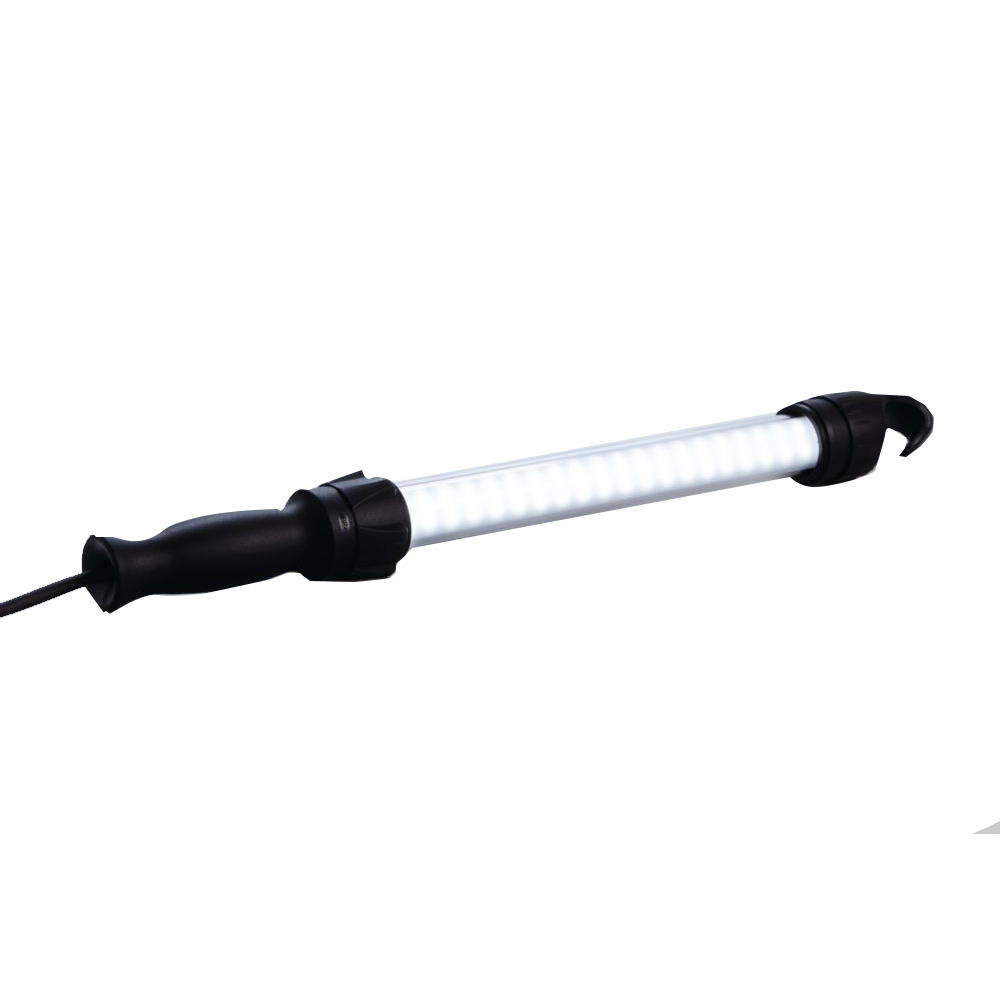

Explore the Stahl Series 6149 LED inspection light, designed for hazardous areas and engineered to perform reliably in extreme conditions ranging from -40°C to +60°C. This robust luminaire operates on a versatile voltage range of 24.00 to 48.00 VAC or DC with a nominal current of 0.700 A and an efficient power consumption of just 13 W. It features a diffuser for even light distribution and boasts high ingress protection ratings of IP66/IP67, ensuring durability against dust and water intrusion in challenging environments.

Lamp Wattage (W)	13
Maximum Temperature (°C)	60
Minimum Temperature (°C)	-40
No. of Lamps	1
Nominal Output Current (A)	0.7
Nominal Power (W)	13
Rated Maximum Operational Voltage AC (V)	48
Rated Maximum Operational Voltage DC (V)	48
Rated Minimum Operational Voltage AC (V)	24
Rated Minimum Operational Voltage DC (V)	24
Rated Operational Current (A)	0.7
Brand	STAHL
Ambient Temperature Range (°C)	-40 to +60
Application	Application range (zones) - 1, 2, 21, 22
Cable Cross Section (mm²)	1.5
Cable Length (m)	5
Certifications	IECEx, ATEX
Degree of Protection	IP66/67
Dimensions (mm)	52W x 52H x 595D
Enclosure Material	Aluminium
Lamp Type	LED
LED Colour	Neutral White
Mounting Type	Surface
Rated Frequency (Hz)	50 - 60
Rated Operational Voltage AC/DC (V)	24 - 48
Series	6149
Standards and Approvals	ATEX/IECeX

Hazardous Area Lighting

STAHL 6149/2-3511-5010 LED INSPECTION LIGHT 273969

Product Code: 273969

Technical Specifications
