Rated Operational Current (A)	16
Brand	STAHL
Ambient Temperature Range (°C)	-50 to 65
Certifications	ATEX (PTB), Brazil (ULB), China (CQST), IECEx (PTB), India (PESO), Taiwan (ITRI)
Colour	Red
Connection Type	Screw Terminal
Degree of Protection	IP64/IP66
Enclosure Material	Polyamide, Glass fibre reinforced
No. of Poles	3P + N + PE
Rated Frequency (Hz)	50/60
Rated Operational Voltage AC (V)	200/346 - 240/415
Series	SolConeX

Hazardous Area Plugs & Sockets

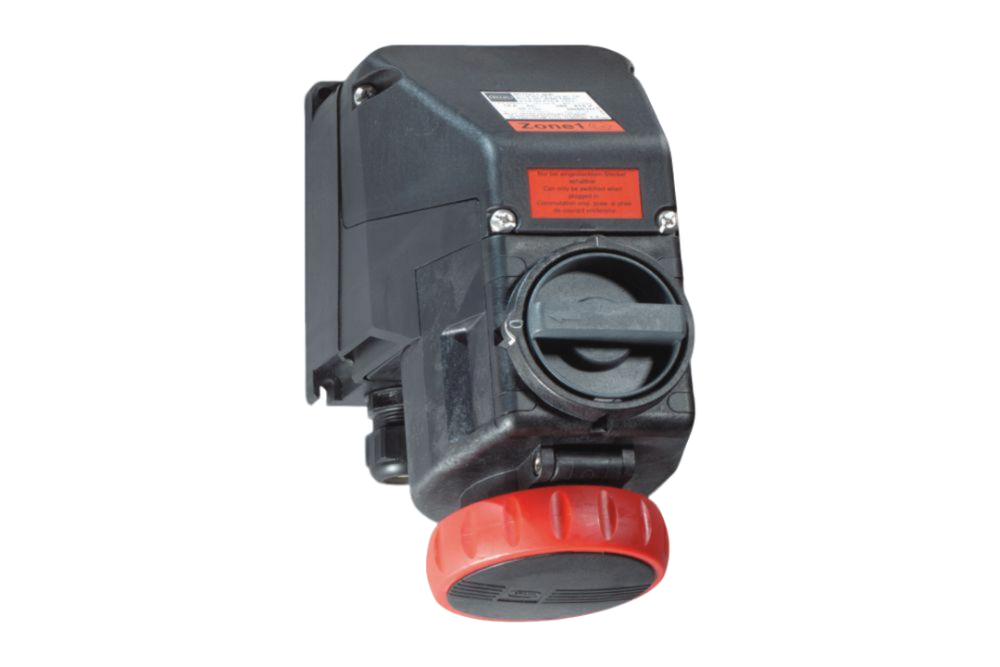

STAHL WALL MOUNTING SOCKET 16A 8570/11-506-S-01-0-00-XX 273936
