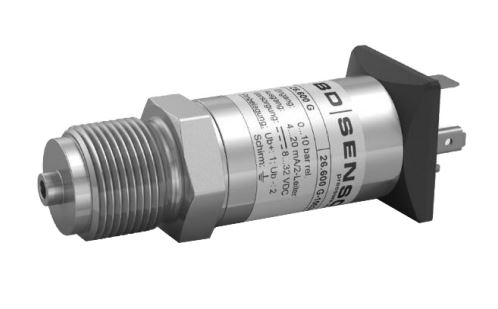

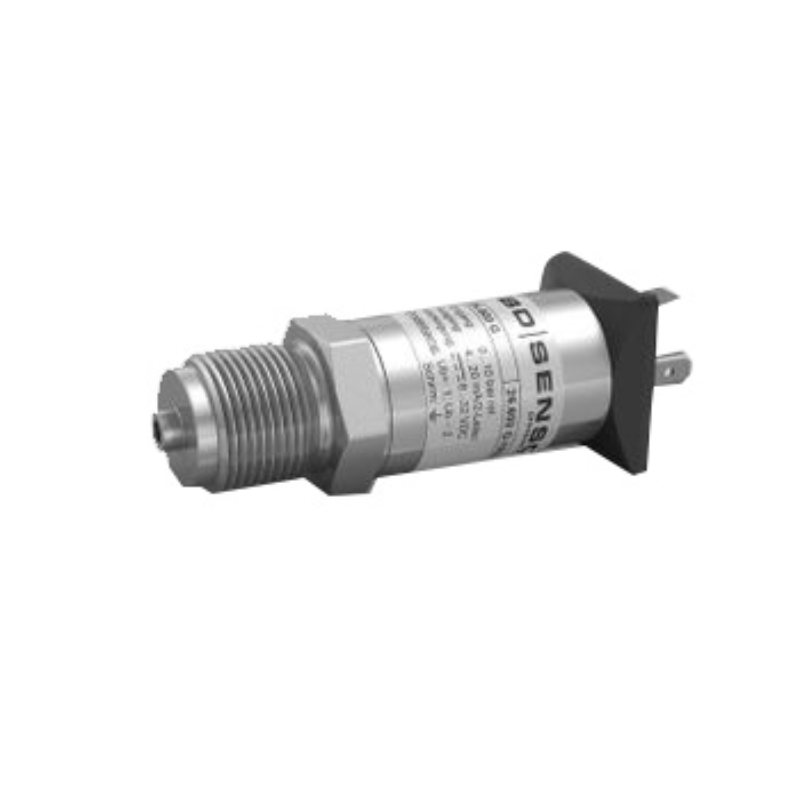

BD Sensors 26600G2502R15TM0N401000 Pressure Transmitter

Product Code: 26600G2502R15TM0N401000

  • 4-20 mA output for reliable signal transmission
  • High accuracy at 0.5% FSO
  • Robust IP67 protection rating
  • Wide temp range: -40 to 125°C
  • Complies with CE, cULus, REACH & RoHS standards
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Pressure Transmitter
Brand BD SENSORS
Series 26.600 G
Accuracy 0.5% FSO
Connection Type Cable outlet with PVC cable
Degree of Protection IP67
Operational Temperature -40 to 125 deg C
Output Type 4-20 mA
Rated Pressure 25 bar
Standards and Approvals CE, cULus, IEC 60770, REACH, RoHS

Description

<p>When it comes to precision and reliability in pressure measurement, the 26.600 G Ceramic Sensor stands out as a robust choice for industrial and commercial applications. This sensor is designed to deliver consistent performance with its 4-20 mA output type, offering seamless integration into existing systems that require accurate data transmission.</p><p>One of the key highlights of this ceramic sensor is its impressive accuracy rating of 0.5% Full Scale Output (FSO). This ensures that you can rely on precise readings across various operations, making it suitable for environments where accuracy is paramount.</p><p>Durability is another strong suit of the 26.600 G series. With an IP67 degree of protection, this sensor is well-equipped to withstand dust and temporary immersion in water up to one meter deep for at least 30 minutes, ensuring longevity even in challenging conditions.</p><p>The operational temperature range from -40 to 125 degrees Celsius makes it versatile enough for extreme environments, whether you&amp;#39;re dealing with frigid cold or intense heat. This wide temperature tolerance allows the sensor to function reliably without compromising performance.</p><p>Compliance with industry standards and approvals such as CE, cULus, IEC 60770, REACH, and RoHS further underscores its quality and safety credentials. These certifications not only assure adherence to global regulatory requirements but also enhance trust in its deployment across various sectors.</p><p>With a rated pressure capacity of 25 bar, this ceramic sensor effectively handles substantial pressure levels typical in many industrial processes. It&amp;#39;s engineered for robustness under high-pressure conditions while maintaining accuracy and reliability.</p><p>Overall, the 26.600 G Ceramic Sensor offers a compelling blend of precision engineering and rugged design tailored for demanding applications. Its combination of features ensures that you have a dependable tool at your disposal when it comes to monitoring pressure accurately over time.</p><p>This product&amp;#39;s specifications make it an excellent candidate if you&amp;#39;re seeking a reliable solution capable of enduring harsh environments while delivering precise measurements consistently—a critical factor in optimizing operational efficiency and safety within your systems.</p>
