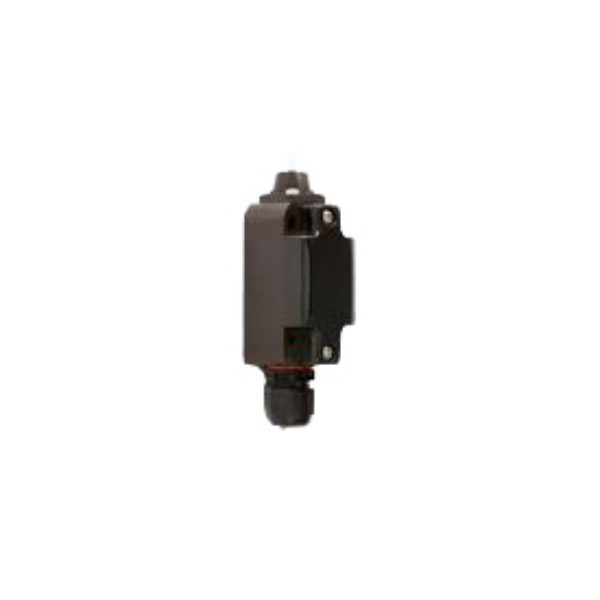

Stahl 258235 Position Switch 400VAC Equal Potential 250VAC Unequal Potential 2-4 A Polyamide Black

Product Code: 258235

  • IP66 protection for harsh environments
  • Operates in -60 to 55°C temperature range
  • Suitable for zones 1, 2, 21, and 22
  • Made from reinforced glass fibre polyamide
  • Complies with ATEX and IECEx standards
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Position Switch
Brand STAHL
Clamping Range 7-13 mm
Ambient Temperature -60 to 55 deg C
Application 1, 2, 21, 22 Zone
Cable Cross Section 0.75-1.5 sq-mm
Colour Black Enclosure
Contact Configuration 2NC
Contact Material Silver Nickel
Degree of Protection IP66
Fuse Type gL/gG
Material Reinforced Glass Fibre Polyamide
Rated Current 2-4 A
Rated Voltage 400 VAC Equal Potential, 250 VAC Unequal Potential
Standards and Approvals European Union (ATEX), IECEx
Switching Capacity 250 V/4 A, 4000 VA

Description

<p>If you&amp;#39;re in the market for a reliable and robust switch, this model offers a blend of durability and performance suited for industrial and commercial applications. Designed with an IP66 degree of protection, it ensures optimal operation even in dusty or wet environments.</p><p>Constructed from reinforced glass fibre polyamide, the black enclosure provides both strength and resistance against harsh conditions. This makes it ideal for use across various demanding settings. With an impressive ambient temperature range from -60 to 55 degrees Celsius, the switch is versatile enough to function efficiently in extreme temperatures.</p><p>The product supports clamping ranges between 7-13 mm, accommodating diverse installation requirements. Its application suitability extends to Zones 1, 2, 21, and 22—making it compliant with stringent safety standards as recognized by European Union (ATEX) and IECEx certifications.</p><p>Electrical specifications include a rated current between 2-4 A and a rated voltage capacity of up to 400 VAC at equal potential or 250 VAC at unequal potential. The contact configuration comprises two normally closed contacts (2NC), crafted from silver nickel for enhanced conductivity and longevity.</p><p>This switch also features a switching capacity of up to 250 V/4 A or an impressive total power handling capability of 4000 VA. It accommodates cable cross sections ranging from 0.75-1.5 square millimeters, providing flexibility during installation.</p><p>Whether you are upgrading existing systems or planning new installations, this switch delivers dependable performance backed by rigorous standards compliance—a practical choice for professionals seeking quality without compromise on technical integrity.</p>
