Product Code: 258229

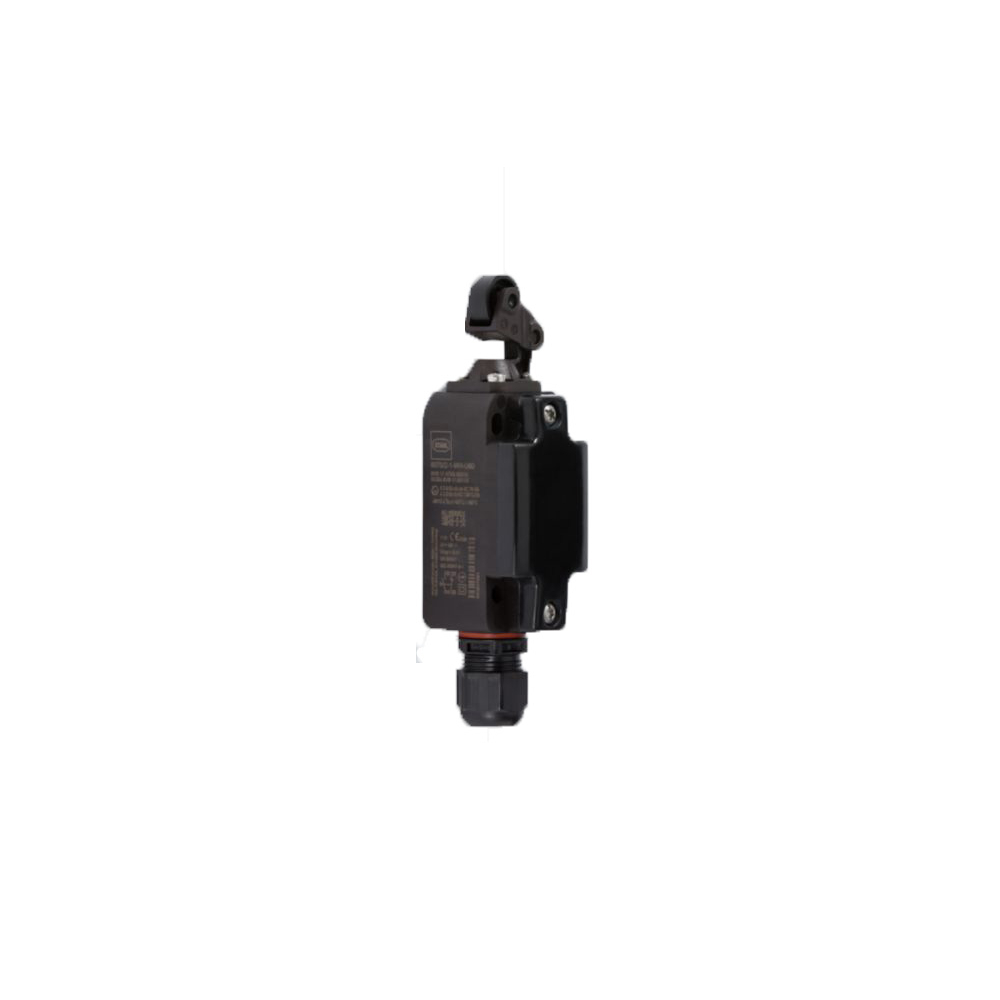

Discover the Stahl Series 8070/2 Position Switches, engineered for hazardous area applications. These robust switches feature a roller lever actuator with snap-action contact and spring mechanism, ensuring reliable operation. With a configuration of 1 NO + 1 NC, they can handle voltages up to 500 VAC or 125 VDC and are suitable for extreme temperatures ranging from -60°C to +55°C at a maximum current of 4 A. The roller is crafted from durable moulded material, and the unit boasts an IP66 rating for superior protection against dust and high-pressure water jets. Ideal for Ex E component integration, these position switches are designed to deliver precision and safety in challenging environments.

Clamping Range (mm)	7 - 13
Fuse Type	gL/gG
Maximum Temperature (°C)	55
Minimum Temperature (°C)	-60
Rated Operational Current (A)	4
Switching Capacity AC-12	Maximum 250 V, Maximum 4 A, Maximum 500 V Potential, Maximum 5000 VA
Switching Capacity AC-15	Maximum 1000 VA, Maximum 250 V, Maximum 4 A, Maximum 500 V Potential
Switching Capacity DC-12	Maximum 125 V, Maximum 4 A, Maximum 400 W
Brand	STAHL
Ambient Temperature Range (°C)	-60 to +55
Application	Application range (zones) - 1, 2, 21, 22
Cable Cross Section (mm²)	0.75 - 1.5
Certifications	ATEX (BVS), Canada / USA (CSA), China (CQST), EAC (CCVE), IECEx (BVS), Korea (KGS)
Colour	Black
Contact Material	Silver-Nickel
Contacts	1NC + 1NO
Degree of Protection	IP66
Enclosure Material	Thermoplast GF, impact resistant
Material	Cover - Duroplast GF, Cable gland - Polyamide, Glass fibre Reinforced
Mounting Type	Threaded
No. of Poles	2
Rated Operational Voltage AC (V)	Equal potential- 500, Unequal potential - 250
Rated Operational Voltage DC (V)	125
Series	8070/2
Standards and Approvals	ATEX/IECeX
Surge Voltage (kV)	6
Tightening Torque (Nm)	Screw Terminals: 0.4 Nm Maximum; Cover Screws: 1.5 - 2 Nm
