Product Code: 258219

Explore the robust Stahl Series 8070/2 position switches, designed for hazardous areas with an Ex E component classification. These switches feature a dual-contact design with one normally closed (NC) and one normally open (NO) contact, suitable for use in high voltage applications up to 500 VAC or 125 VDC. The rotary lever actuator ensures precise operation, while the slow-action contact provides reliable switching. Engineered to withstand extreme temperatures ranging from -40°C to +70°C (T6), and boasting an IP66 rating, these switches are built to deliver consistent performance in demanding environments.

Fuse Type	gL/gG
Maximum Temperature (°C)	70
Minimum Temperature (°C)	-40
Switching Capacity AC-12	Maximum 250 V, Maximum 4 A, Maximum 500 V Potential, Maximum 5000 VA
Switching Capacity AC-15	Maximum 1000 VA, Maximum 250 V, Maximum 4 A, Maximum 500 V Potential
Switching Capacity DC-12	Maximum 125 V, Maximum 4 A, Maximum 400 W
Brand	STAHL
Ambient Temperature Range (°C)	-60 to +55
Application	Application range (zones) - 1, 2, 21, 22
Cable Cross Section (mm²)	0.75 - 1.5
Certifications	ATEX (BVS), Canada / USA (CSA), China (CQST), EAC (CCVE), IECEx (BVS), Korea (KGS)
Colour	Enclosure - Black
Contact Material	Silver-Nickel
Contacts	1NC + 1NO
Degree of Protection	IP66
Enclosure Material	Thermoplast GF
Material	Cover - Duroplast GF, Polyamide, Glass fibre reinforced
Mounting Type	Threaded
No. of Poles	2
Rated Operational Voltage AC (V)	Equal potential- 500, Unequal potential - 250
Rated Operational Voltage DC (V)	125
Series	8070/2
Standards and Approvals	ATEX/IECeX
Surge Voltage (kV)	6
Tightening Torque (Nm)	Screw Terminals: 0.4 Nm Maximum; Cover Screws: 1.5 - 2 Nm

Hazardous Area Control Boxes

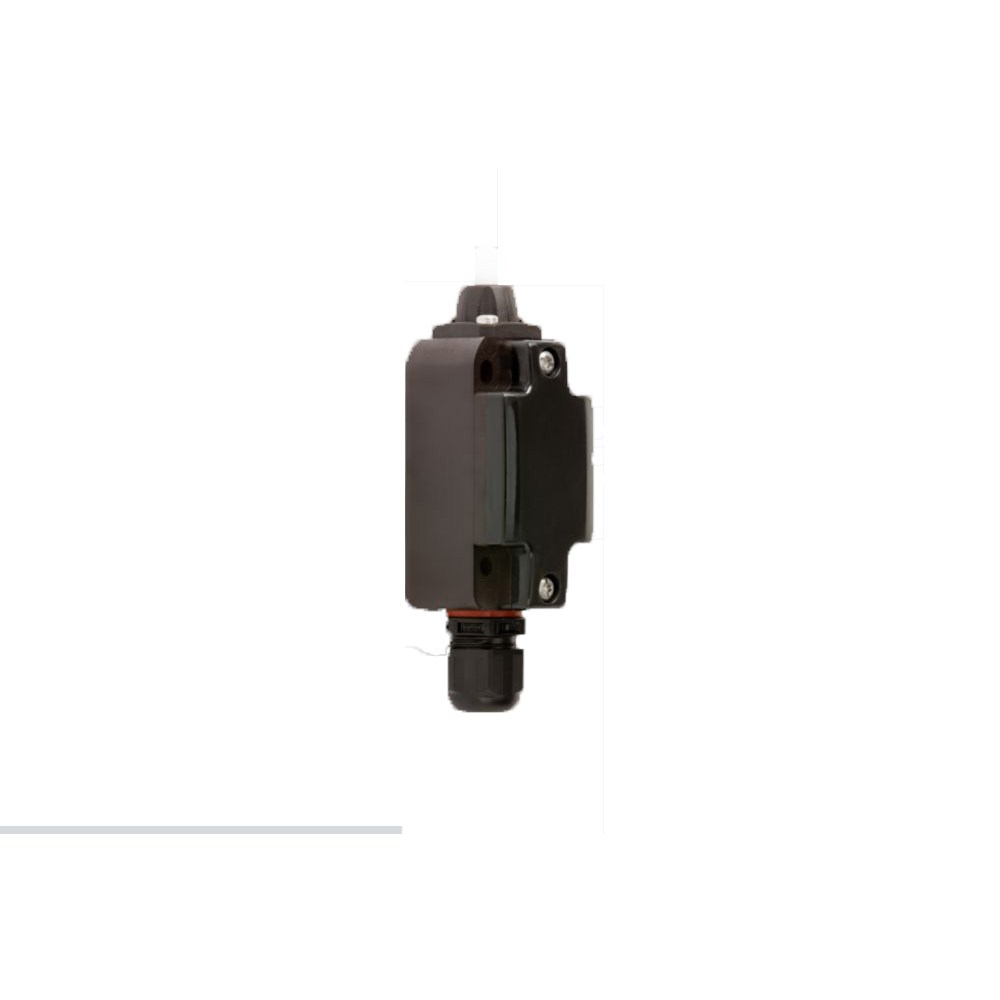

STAHL 8070/2-1-W-U60 POSITION SWITCHES 258219

Product Code: 258219
