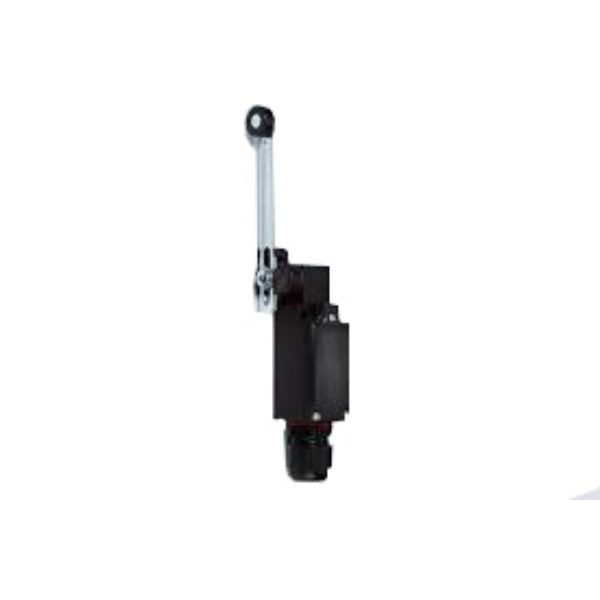

STAHL ENCLOSED POSITION SWITCH 254896

Product Code: 254896

This position switch has an operational voltage of 125VDC and 500VAC. It features an adjustable rotary lever actuator. The switch has 1 normally closed (NC) and 1 normally open (NO) contact. The rated operational current is between 2A and 4A, with a surge voltage rating of 6 kV. The switching function is slow-action contact with overlapping. It has a cable entry of 1xM20x1.5 and is IP66 rated for protection against dust and water ingress.

Technical Specifications

Clamping Range (mm) 7 - 13
Fuse Type gL/gG
Rated Operational Current (A) 2 - 4
Brand STAHL
Ambient Temperature Range (°C) -60 to +55
Application Application range (zones) - 1, 2, 21, 22
Cable Cross Section (mm²) 0.75 - 1.5
Certifications European Union (ATEX), IECEx
Colour Enclosure - Black
Contact Material Silver-Nickel
Contacts 1NC + 1NO
Degree of Protection IP66
Enclosure Material Thermoplast GF
Material Cover - Duroplast GF, Polyamide, Glass fibre reinforced
Rated Insulation Voltage (V) 500
Rated Operational Voltage AC (V) Equal potential- 500, Unequal potential - 250
Rated Operational Voltage DC (V) 125
Surge Voltage (kV) 6
Tightening Torque (Nm) Screw Terminals: 0.4 Nm Maximum; Cover Screws: 0.4 - 0.45 Nm
