Product Code: 244654

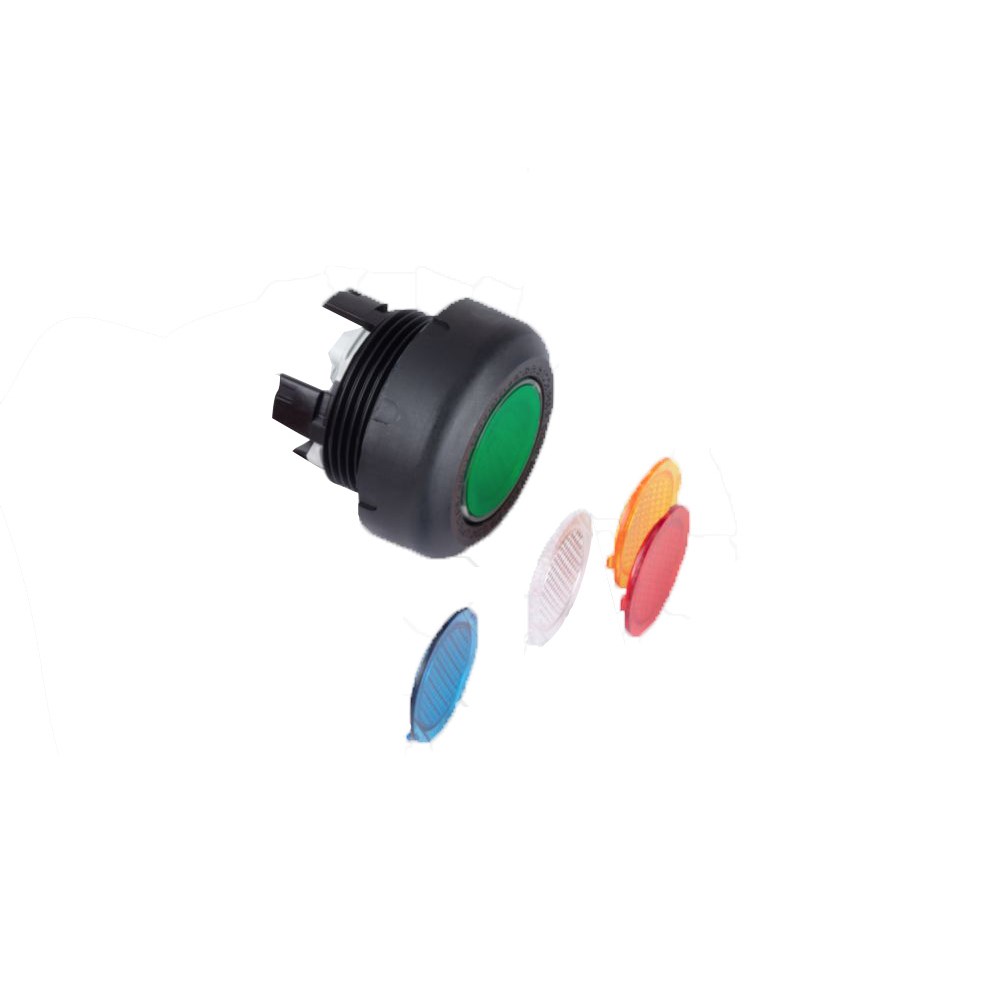

Enhance your hazardous area control systems with Stahl's Series 8602 illuminated pushbutton. This robust component features a spring return mechanism, a versatile 39.0 mm diameter, and is available in various colours to suit your design needs. Engineered for resilience, it operates flawlessly within a temperature range of -20°C to +60°C and boasts an IP66 rating for superior protection against dust and high-pressure water jets. As an Ex E component, it ensures safe operation in explosive environments, making it an ideal choice for demanding industrial applications.

Maximum Temperature (°C)	60
Minimum Temperature (°C)	-20
Brand	STAHL
Ambient Temperature Range (°C)	-20 to +60
Application	Application range (zones) - 1, 2, 21, 22
Certifications	IECEx, ATEX, UL
Degree of Protection	IP66
Diameter (mm)	39
Enclosure Material	Polyamide
Series	8602
Standards and Approvals	ATEX/IECeX
Tightening Torque (Nm)	3

Hazardous Area Control Boxes

STAHL 8602C3-735-B-C06 ILLUMINATED PUSHBUTTON SPRING RETURN 244654

Product Code: 244654
