Brand	ABB
Design of Control Element	Toggle
Main Circuit Electrical Connection	Bolt Connection
Main Current Circuit Connection Position	Front Side
MCCB Type	XT5 Frame
Overload Release Current Setting (A)	160
Rated Instantaneous Short-Circuit Current - Ii (A)	400
S/I (1 to 10 x In) - I2/I3 (A)	400 - 4000
Tripping Unit	Ekip DIP LS/I
Breaking Capacity (kA)	36
Breaking Capacity 415V AC - Icu (kA)	36
Current Rating (A)	400
Degree of Protection	IP20
EAN	8056221004312
L (0.4 to 1 x In) - I1 (A)	160 - 400
No. of Poles	3
Poles	3P
Power Loss (W)	19
Rated Current (A)	400
Rated Uninterrupted Current - Iu (A)	400
Rated Voltage (V)	690
Size of Frame	XT5
Trip Unit	Ekip DIP LS/I
Trip Unit - Electronic	Ekip DIP LS/I

Moulded Case Circuit Breakers

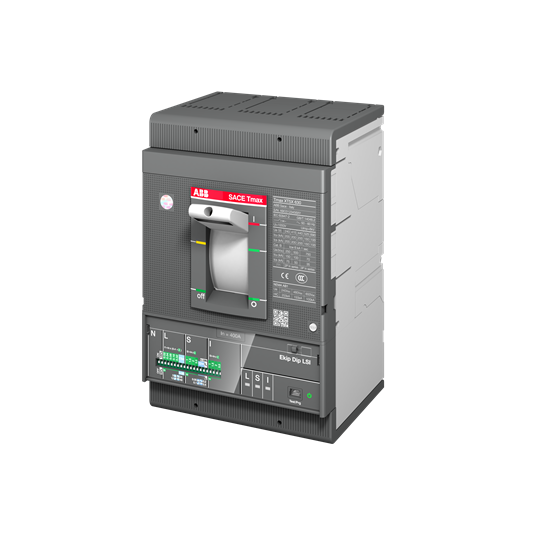

ABB XT5N 400 EKIP DIP LS/I IN=400 3P F F 1SDA100354R1
