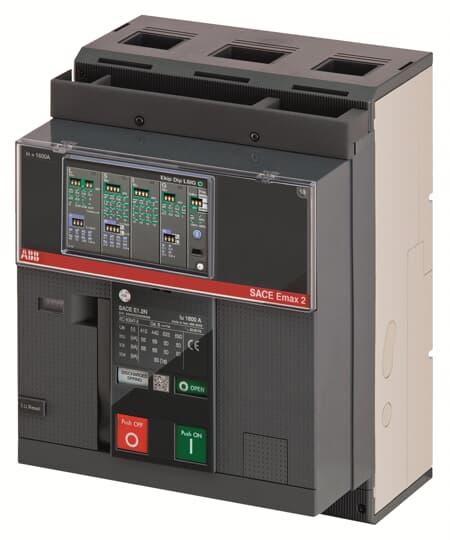

<p>When selecting an Automatic Air Circuit Breaker (ACB) for industrial or commercial applications, understanding the technical specifications is crucial. This ACB offers a robust solution with a range of features designed to meet demanding electrical system requirements.</p><p>With a rated current of 1600 A, this ACB efficiently handles substantial electrical loads, making it suitable for large-scale operations. It possesses a rated impulse withstand voltage of 12 kV and a rated insulation voltage of 1000 V, ensuring resilience against high-voltage surges and maintaining safety under normal operating conditions. The operational voltage stands at 690 VAC, which aligns well with many industrial power systems.</p><p>The breaker utilizes an EL release type paired with the Ekip Dip LI trip unit. This combination provides reliable protection through electronic sensing and control mechanisms that respond effectively to overcurrent situations. The breaking capacity is rated at 50 kA, indicating its ability to interrupt significant fault currents without compromising system integrity.</p><p>Designed with practicality in mind, this model has three poles and features front connection type for ease of installation and maintenance. The degree of protection is IP30, offering basic protection against solid objects greater than 2.5 mm while being suitable for indoor installations where moisture exposure is limited.</p><p>Installation specifics include bolt terminal types requiring a tightening torque of 45 N-m, ensuring secure connections in high-vibration environments typical in industrial settings. Its dimensions are compact yet powerful: measuring 210 mm in width, 296 mm in height, and 183 mm in depth—an efficient footprint that fits comfortably into standard panel configurations.</p><p>In terms of energy efficiency and heat management within the enclosure, this ACB has a power loss rating of just 201 W—a critical factor when considering thermal management strategies within switchgear assemblies.</p><p>Compliance with IEC standards highlights its adherence to international quality benchmarks for performance reliability and safety assurance—a key consideration for any project conforming to global standards.</p><p>Weighing only 14 kg facilitates easier handling during installation or replacement procedures without necessitating specialized equipment or excessive manpower.</p><p>This automatic circuit breaker combines dependable performance characteristics with practical design elements tailored for rigorous industrial use cases—ideal for engineers seeking reliable solutions backed by industry-standard certifications while optimizing space utilization within their electrical infrastructure setups.</p>
