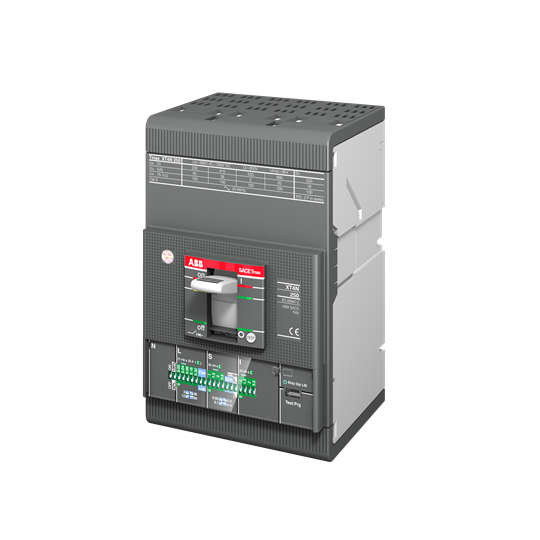

ABB 1SDA068564R1 Moulded Case Circuit Breaker 690VAC 160A 3-P 120kA Ekip Dip LSI Front For: XT4L

Product Code: 1SDA068564R1

  • Handles up to 160 A current
  • Withstands impulse of 8 kV
  • Insulation voltage rated at 1000 V
  • Breaks capacity up to 120 kA
  • Complies with IEC60947-2 standards
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Moulded Case Circuit Breaker
Brand ABB
Breaking Capacity 120 kA
Connection Type Front
Degree of Protection IP20
Main Circuit Connecting Capacity 85-200 sq-mm
Number of Poles 3
Power Loss 8.9 W
Rated Current 160 A
Rated Frequency 50/60 Hz
Rated Impulse Withstand Voltage 8 kV
Rated Insulation Voltage 1000 V
Rated Voltage 690 VAC
Release Type EL
Standards and Approvals IEC60947-2
Suitable For Use With XT4L
Terminal Type Bolt
Trip Unit Ekip Dip LSI
Weight 2.5 kg
Width 105 mm

Description

<p>When it comes to reliable and efficient circuit protection in industrial and commercial settings, the MCCB with a rated current of 160 A stands out as a robust solution. Designed for professionals who demand precision and durability, this Molded Case Circuit Breaker (MCCB) offers an impressive array of technical specifications that ensure optimal performance across various applications.</p><p>The MCCB is engineered to handle substantial electrical loads with its 690 VAC rated voltage, making it suitable for demanding environments. Its ability to withstand high impulse voltages up to 8 kV and an insulation voltage rating of 1000 V further underscores its reliability under challenging conditions. The trip unit, Ekip Dip LSI, provides advanced protection features that cater to diverse operational needs.</p><p>Safety is paramount in any electrical system, and this MCCB does not compromise on this front. With a breaking capacity of 120 kA, it effectively interrupts fault currents, safeguarding both equipment and personnel from potential hazards. Additionally, the degree of protection rated at IP20 ensures that the internal components are shielded against ingress from solid objects greater than 12 mm in diameter.</p><p>Installation flexibility is enhanced by its front connection type and bolt terminal design, allowing straightforward integration into existing systems. The compact width of 105 mm makes it adaptable for installations where space may be limited without sacrificing performance or accessibility.</p><p>Compliance with IEC60947-2 standards guarantees that this MCCB meets international safety and quality benchmarks—a critical consideration for engineers seeking dependable components for their projects. Furthermore, the device operates efficiently across standard frequencies of 50/60 Hz.</p><p>For those concerned about energy efficiency, the power loss is kept minimal at just 8.9 W even when operating at full capacity—an attribute that contributes to overall system sustainability while reducing operational costs over time.</p><p>Weighing in at a manageable 2.5 kg, this MCCB is easy to handle during installation or maintenance procedures. It also supports main circuit connections ranging from 85-200 sq-mm cable sizes—offering versatility in application scenarios.</p><p>This product is particularly well-suited for use with XT4L setups; therefore if your project involves such configurations you will find seamless compatibility here which can simplify procurement processes considerably by ensuring all components work harmoniously together straight out-of-the-box without requiring additional modifications or adjustments post-installation phase completion thereby saving valuable time resources typically associated otherwise had there been compatibility issues needing resolution prior actual deployment taking place onsite within designated facility premises involved therein throughout lifecycle duration period covered accordingly as planned initially beforehand too!</p>
