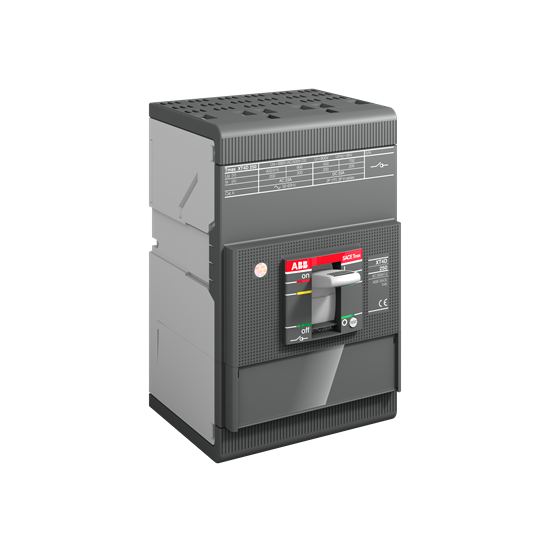

ABB 1SDA068212R1 Switch-Disconnector IP20 250A 3-P F Version 690/500VAC/DC

<p>When selecting a switch disconnector for your industrial or commercial needs, it&amp;#39;s imperative to consider a product that meets rigorous technical standards while offering reliable performance. This particular switch disconnector is designed with precision and efficiency in mind, making it an ideal choice for professionals seeking dependable electrical solutions.</p><p>Rated at 250 A, this switch disconnector offers robust current handling capabilities suitable for demanding applications. Its compact dimensions—105 mm in width, 160 mm in height, and 82.5 mm in depth—ensure it can be easily integrated into various setups without occupying excessive space. Despite its solid construction, it maintains a manageable weight of 2.086 kg.</p><p>In terms of electrical specifications, the device supports a rated voltage of up to 690 VAC or 500 VDC, providing versatility across different power systems. It also boasts an impressive rated impulse withstand voltage of 8 kV and a rated insulation voltage of 800 V, ensuring safety and reliability under high-stress conditions.</p><p>The switch disconnector is equipped with three poles and features front connection type for straightforward installation and maintenance. Its IP20 degree of protection signifies that it is adequately protected against accidental contact with fingers and will not allow objects larger than 12mm to penetrate the enclosure—a crucial consideration for safety compliance.</p><p>Operating at frequencies between 50 Hz and 60 Hz allows this device to function effectively within standard power grids found globally. These attributes collectively make the switch disconnector suitable for varied environments where consistent performance is paramount.</p><p>In summary, this switch disconnector&amp;#39;s combination of high current rating, versatile voltage compatibility, compact design, and robust protective features makes it an excellent addition to any industrial or commercial electrical system looking to enhance operational efficiency while maintaining stringent safety standards.</p>
