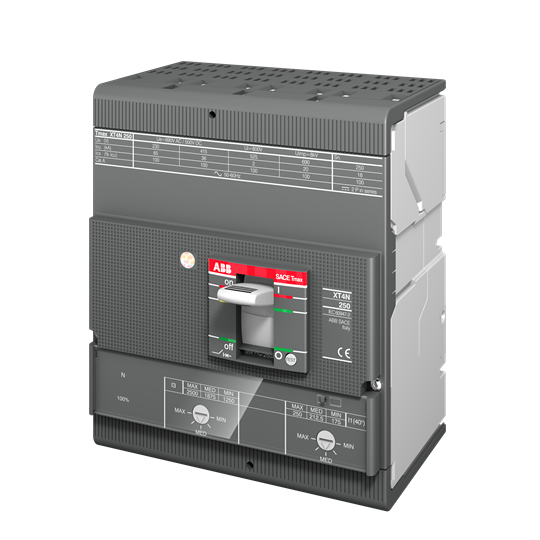

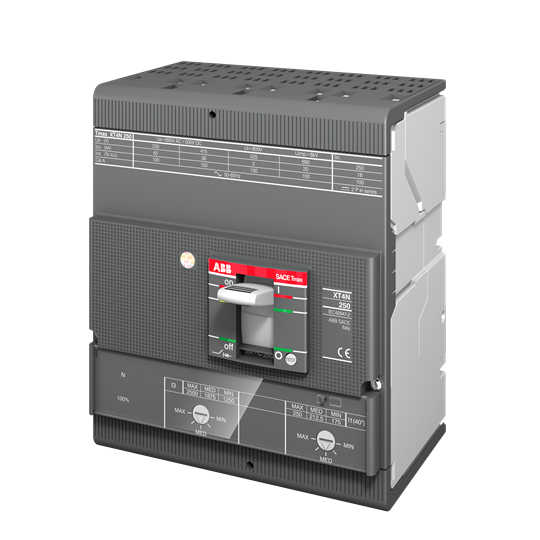

<p>When selecting a Molded Case Circuit Breaker (MCCB) for your industrial or commercial application, the technical specifications of the device are paramount. This MCCB is designed to meet rigorous demands, ensuring both safety and efficiency.</p><p>Rated at 100 A, this MCCB offers robust performance with a rated impulse withstand voltage of 8 kV and an insulation voltage of 1000 V. It operates efficiently within a rated voltage range of 690/750 VAC/VDC, making it versatile for various electrical systems. The thermal-magnetic (TM) release type ensures reliable protection against overcurrent conditions by providing both instantaneous and time-delayed tripping functionalities.</p><p>The TMA trip unit enhances operational reliability by allowing adjustable settings tailored to specific circuit requirements. With power loss minimized to just 6.24 W, this MCCB contributes to energy-efficient installations without compromising on performance.</p><p>Designed with four poles, it has a breaking capacity of 36 kA which provides significant fault current interruption capabilities—essential for protecting circuits in high-demand environments. The front connection type and bolt terminal design facilitate straightforward installation and maintenance processes.</p><p>With an IP20 degree of protection, this MCCB is suitable for indoor use where ingress from fingers or objects greater than 12 mm in diameter needs prevention. Measuring at a width of 140 mm and weighing in at 3.5 kg, its compact form factor allows for easy integration into existing panels without requiring extensive modifications.</p><p>This product complies with the IEC60947-2 standards ensuring adherence to international safety and performance benchmarks—a critical factor when choosing components for electrical distribution systems.</p><p>Operating seamlessly across frequencies ranging from 50 Hz to 60 Hz adds further flexibility in deployment across different regions or applications. It is engineered to work optimally with XT4N frameworks enhancing compatibility within modular systems.</p><p>The rated short circuit current spans between 500-1000 A while offering a current setting range from 70-100 A—providing adaptability according to load variations or specific protection needs within your system architecture. Additionally, its main circuit connecting capacity ranges between 85-200 sq-mm accommodating diverse conductor sizes effectively.</p><p>In conclusion, whether you&#39;re upgrading existing infrastructure or designing new installations, this MCCB delivers dependable performance underpinned by stringent engineering standards suited perfectly for demanding Australian markets.</p>
