Brand	ABB
Design of Control Element	Toggle
Magnetic - I3 (A)	2500
Main Circuit Electrical Connection	Bolt Connection
Main Current Circuit Connection Position	Front Side
MCCB Type	XT3 Frame
Overload Release Current Setting (A)	175
Rated Instantaneous Short-Circuit Current - Ii (A)	2500
Thermal (0.7 to 1 x In) - I1 (A)	175 - 250
Trip Unit - Thermal Magnetic	TMD
Tripping Unit	TMD
Breaking Capacity (kA)	36
Breaking Capacity 415V AC - Icu (kA)	36
Current Rating (A)	250
Degree of Protection	IP20
EAN	8015644019303
No. of Poles	3
Poles	3P
Power Loss (W)	17.8
Rated Current (A)	250
Rated Uninterrupted Current - Iu (A)	250
Rated Voltage (V)	690
Size of Frame	XT3
Trip Unit	TMD

Moulded Case Circuit Breakers

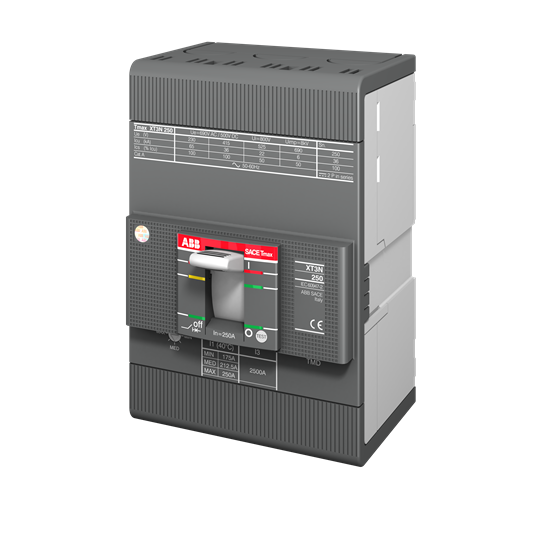

ABB XT3N 250 TMD 250-2500 3P F F 1SDA068059R1
