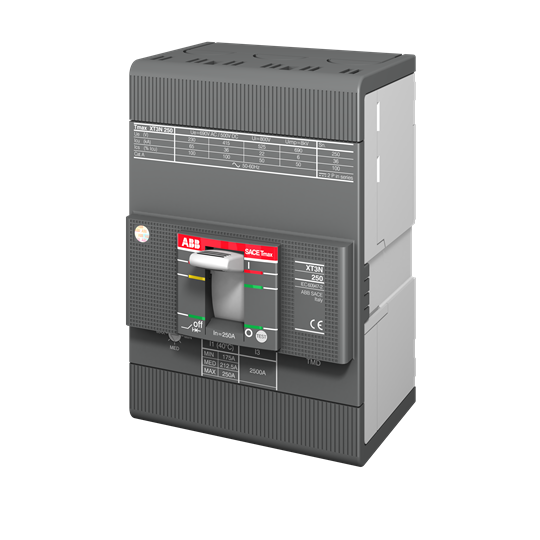

<p>When it comes to selecting the right molded case circuit breaker (MCCB) for your industrial or commercial application, understanding the technical specifications is crucial. The MCCB you&#39;re considering offers a robust set of features designed to meet demanding electrical requirements with reliability and precision.</p><p>This MCCB is engineered with a rated current of 63 A, ensuring it can handle substantial electrical loads effectively. Its rated impulse withstand voltage stands at 8 kV, providing excellent protection against transient overvoltages. The device also boasts a rated insulation voltage of 800 V and supports both AC and DC applications with rated voltages of 690 VAC and 500 VDC respectively.</p><p>The release type for this unit is thermal-magnetic (TM), paired with a thermal magnetic trip unit (TMD). This combination ensures precise tripping characteristics that protect your circuits from overloads and short circuits efficiently. With a breaking capacity of 36 kA, this MCCB is capable of interrupting high fault currents, safeguarding your system from potential damage.</p><p>Designed for versatility, it accommodates three poles and connects via the front using bolt terminals, allowing straightforward installation in various setups. The degree of protection offered by this unit is IP20, which means it&#39;s protected against solid objects larger than 12 mm but not against water ingress.</p><p>Measuring at a width of 105 mm and weighing in at just 1.7 kg, this MCCB provides compact yet powerful performance without occupying excessive space in your panel setup. It adheres to IEC60947-2 standards—an assurance of its quality and compliance with international safety regulations.</p><p>Operating within a frequency range of 50/60 Hz makes it suitable for diverse geographic regions where these frequencies are standard. Furthermore, it&#39;s compatible with XT3N systems, offering flexibility when integrating into existing installations or new projects.</p><p>The current setting range spans from 44.1 A to the full-rated current capacity of 63 A, allowing you to fine-tune the operational parameters based on specific load requirements. Its main circuit connecting capacity ranges between 85-192 sq-mm—providing ample room for connecting conductors safely and securely.</p><p>With power loss kept minimal at just 4.3 W during operation, this MCCB ensures energy efficiency while maintaining optimal performance levels throughout its lifecycle.</p><p>In summary, if you&#39;re seeking an MCCB that combines reliability with adaptability across various applications while adhering to stringent safety standards—this product might be exactly what you need!</p>
