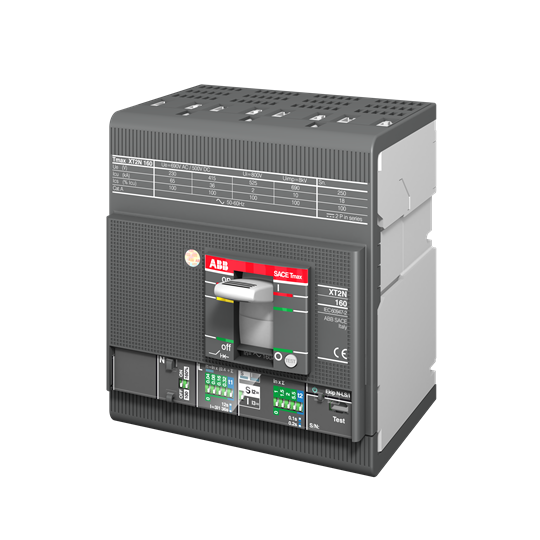

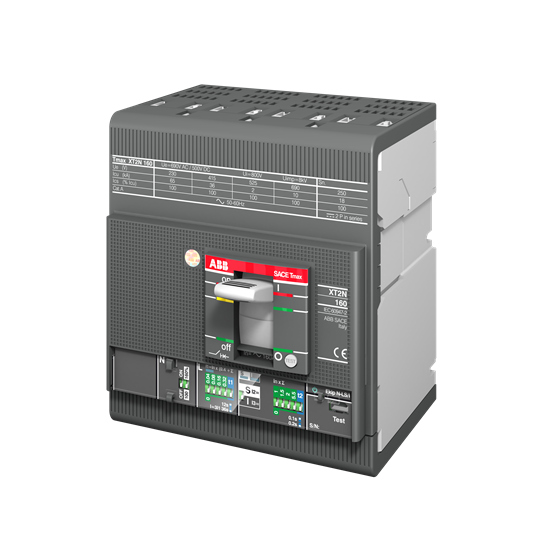

<p>When it comes to selecting the right Molded Case Circuit Breaker (MCCB) for your industrial or commercial application, understanding the technical specifications is crucial. This MCCB offers a robust solution with its well-rounded features tailored to meet demanding electrical environments.</p><p>Rated at 100 A, this MCCB is designed to handle substantial current loads effectively. Its rated voltage of 690 VAC ensures compatibility with high-voltage applications, making it suitable for various industrial settings. The device boasts a rated insulation voltage of 1000 V and an impressive rated impulse withstand voltage of 8 kV, providing excellent protection against electrical surges.</p><p>Safety and reliability are further enhanced by its breaking capacity of 70 kA. This high breaking capacity indicates that the MCCB can safely interrupt fault currents without damage, ensuring continuity in operations and safeguarding equipment.</p><p>The Ekip Dip LSI trip unit integrated into this MCCB provides precise electronic protection with long-time, short-time, and instantaneous trip functions. This enhances system protection by allowing tailored settings according to specific operational needs.</p><p>With four poles available, this MCCB supports balanced load distribution across phases in three-phase systems. It features a front connection type which simplifies installation and maintenance processes in confined spaces.</p><p>The degree of protection offered is IP20, indicating that while the product is protected against medium-sized solid objects like fingers or tools greater than 12 mm diameter, it should be installed within an enclosure for dust and water resistance in harsher environments.</p><p>Installation flexibility is ensured through bolt terminal types that provide secure connections under varying conditions. The compact width of 120 mm allows for efficient use of space within electrical panels or switchboards.</p><p>Power efficiency is also considered with a power loss rating at just 4.2 W—minimizing energy wastage during operation—which contributes to overall system efficiency and cost-effectiveness over time.</p><p>Weighing only 1.6 kg, handling and installation become more manageable without compromising on performance or durability standards set by IEC60947-2 compliance—a testament to its quality assurance in safety-critical applications globally recognized across industries.</p><p>Lastly, this MCCB pairs seamlessly with XT2H systems offering you versatility when integrating into existing setups or planning new installations—ensuring you have a reliable partner ready for your next project’s demands.</p>
