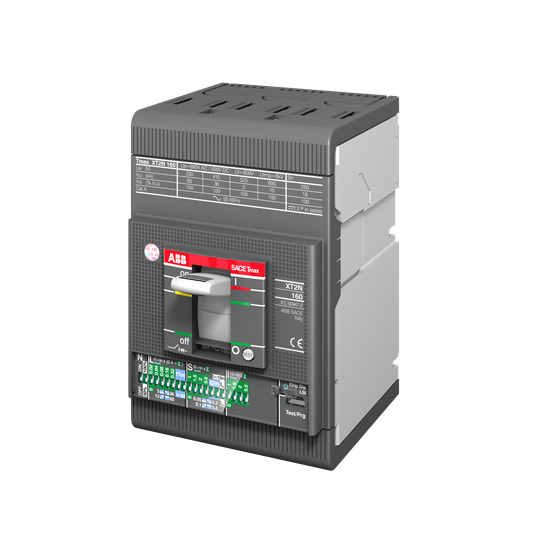

<p>When selecting the right MCCB (Moulded Case Circuit Breaker) for your industrial or commercial needs, understanding the technical specifications is vital. This particular MCCB offers a robust set of features that ensure reliable performance in demanding environments.</p><p>With a rated current of 10 A, this MCCB is designed to handle moderate electrical loads efficiently. It supports both AC and DC applications with a rated voltage of 690 VAC/VDC, providing flexibility across various systems. The device also boasts an impressive rated impulse withstand voltage of 8 kV and a rated insulation voltage of 1000 V, enhancing its resilience against transient overvoltages.</p><p>The Ekip Dip LSI trip unit ensures precise protection by allowing adjustments based on load conditions. This feature helps prevent unnecessary tripping while safeguarding equipment from overloads and short circuits. Additionally, the EL release type adds another layer of security by offering reliable fault detection.</p><p>In terms of durability, this MCCB features a breaking capacity of 70 kA, making it suitable for high fault level scenarios. The front connection type simplifies installation and maintenance tasks, while the bolt terminal type ensures secure connections within your system setup.</p><p>Designed with practicality in mind, the product has three poles and maintains a compact form factor with a width of just 90 mm. Despite its powerful capabilities, it weighs only 1.12 kg—making handling straightforward during installation or replacement processes.</p><p>Rated for use at frequencies between 50/60 Hz, this MCCB aligns well with most standard power systems globally. Its degree of protection is IP20, which provides basic protection against fingers and similar objects but should be installed in suitable enclosures when higher levels are required.</p><p>For those concerned about energy efficiency, the low power loss of just 0.1 W contributes to reduced operational costs over time without compromising on performance quality.</p><p>Compatibility is key in any electrical setup; thus this MCCB pairs seamlessly with XT2H models ensuring consistency across installations where multiple units may be deployed together.</p><p>Compliant with IEC60947-2 standards and approvals signifies adherence to international safety benchmarks—providing peace-of-mind that you’re investing in a product meeting rigorous quality criteria worldwide.</p><p>Lastly but importantly—the main circuit connecting capacity ranges from 32.5-100 sq-mm accommodating various conductor sizes thus facilitating easy integration into diverse wiring configurations within your facility’s infrastructure.</p>
