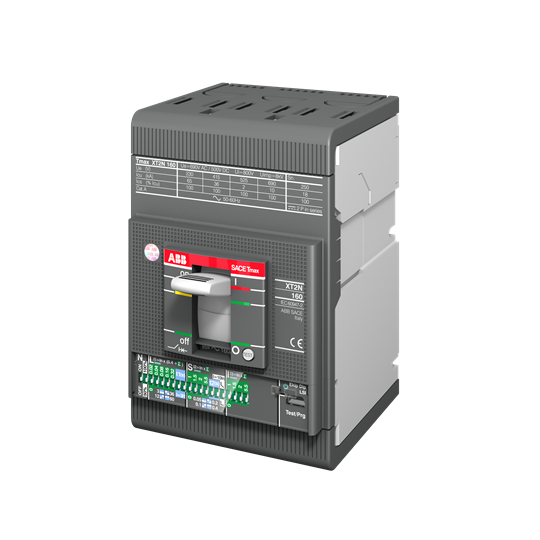

<p>When selecting a Molded Case Circuit Breaker (MCCB) for your industrial or commercial needs, understanding the specifications is crucial to ensure it meets your technical requirements. This MCCB offers robust performance and reliability with its well-rounded features.</p><p>Starting with the electrical characteristics, this MCCB has a rated current of 100 A, making it suitable for medium-load applications. It operates at a rated voltage of 690 VAC and supports a rated insulation voltage of 1000 V, ensuring safety and efficiency in high-voltage environments. Additionally, the device boasts an impressive rated impulse withstand voltage of 8 kV, providing excellent protection against transient over-voltages.</p><p>The trip unit employed in this MCCB is the Ekip Dip LSI release type. This advanced trip unit ensures precise control and reliable protection by monitoring overloads or short circuits effectively. The breaking capacity stands at a solid 50 kA, which means it can safely interrupt fault currents without compromising system integrity.</p><p>For those considering installation specifics, this MCCB is designed with front connection type terminals that are bolt-based for secure connections. It accommodates main circuit connecting capacities ranging from 32.5 to 100 sq-mm, offering flexibility in wiring options based on your setup requirements.</p><p>Measuring just 90 mm in width and weighing only 1.12 kg, this compact breaker maintains ease of installation while conserving valuable panel space – an essential feature in today’s streamlined electrical systems. Its degree of protection is IP20, indicating basic protection against dust ingress but not against moisture; hence it&#39;s best suited for indoor applications where such conditions are controlled.</p><p>Operating within standard frequencies of both 50 Hz and 60 Hz allows versatility across different regions’ power grids without requiring additional adjustments or equipment changes.</p><p>This MCCB also adheres to IEC60947-2 standards and approvals – an assurance of compliance with international safety regulations that many industry professionals deem necessary when selecting components for critical applications.</p><p>Designed to work seamlessly with XT2S units enhances its adaptability within existing systems or new projects alike. With a power loss rating at just 4.2 W during operation under load conditions helps maintain energy efficiency across installations – an increasingly important factor given rising energy costs globally.</p><p>In summary: whether upgrading existing infrastructure or planning new installations where reliability coupled with efficient design matters most - consider incorporating this capable yet compact solution into your plans confidently knowing it delivers on all fronts without unnecessary complexity involved!</p>
