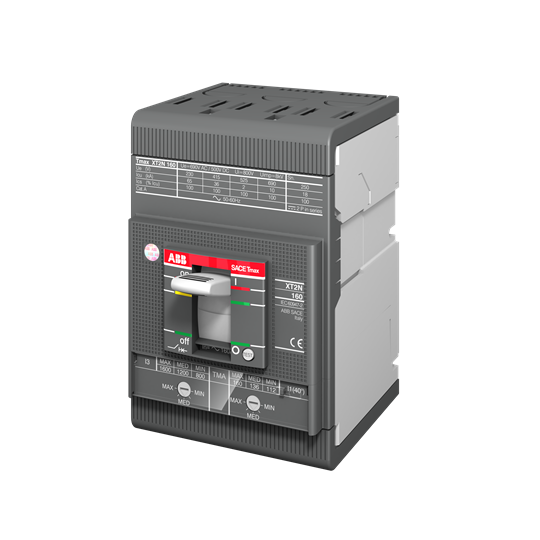

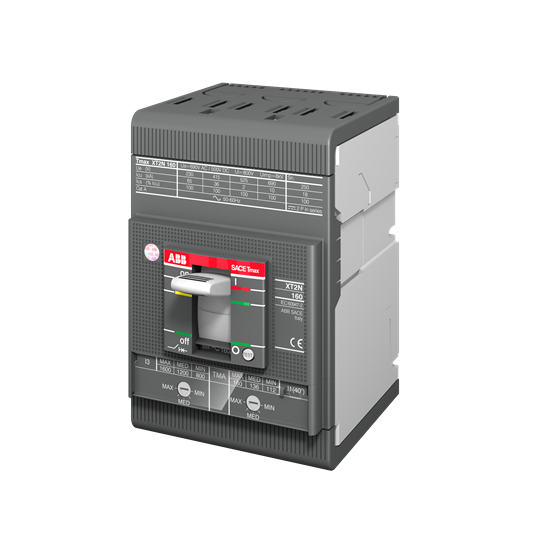

ABB 1SDA067774R1 Moulded Case Circuit Breaker 690/500VAC/VDC 12.5A 3-P 70kA 175A Front For: XT2H

<p>When selecting a Molded Case Circuit Breaker (MCCB) for your industrial or commercial application, understanding its specifications is crucial. This MCCB stands out with its robust features designed to ensure reliability and safety in various environments.</p><p>With a rated current of 12.5 A, this MCCB efficiently manages electrical flow, making it suitable for moderate-load applications. Its impressive rated impulse withstand voltage of 8 kV ensures resilience against transient overvoltages, safeguarding connected equipment from potential damage.</p><p>The MCCB offers a rated insulation voltage of 1000 V, providing strong protection and reducing the risk of electrical shock or short circuits. It supports both AC and DC systems with a rated voltage capacity of 690/500 VAC/VDC, catering to diverse power needs.</p><p>Featuring an &amp;#39;M&amp;#39; type release mechanism, this breaker provides precise control over tripping characteristics to enhance system protection. The device&amp;#39;s power loss is minimal at only 1.05 W, contributing to energy efficiency and reduced operational costs.</p><p>Designed with three poles and a breaking capacity of 70 kA, this MCCB can handle substantial fault currents without compromising on performance. The front connection type ensures easy installation and maintenance access.</p><p>Protected by an IP20 rating, the device is safeguarded against solid objects larger than 12mm while ensuring user safety during operation. The bolt terminal type further enhances secure connections in demanding environments.</p><p>Measuring just 90 mm in width and weighing 1.4 kg, it fits comfortably into compact spaces without adding significant weight to your setup. Compliant with IEC60947-2 standards and approvals, you can trust its quality and adherence to international norms.</p><p>Operating effectively across frequencies of 50/60 Hz makes it versatile for use in different regions worldwide. Additionally, it&amp;#39;s compatible with XT2H units for seamless integration into existing systems.</p><p>The MCCB boasts a rated short circuit current capacity of up to 175 A—ideal for applications requiring high fault tolerance—and supports main circuit connecting capacities ranging from 32.5-100 sq-mm for flexible wiring solutions tailored to specific requirements.</p>
