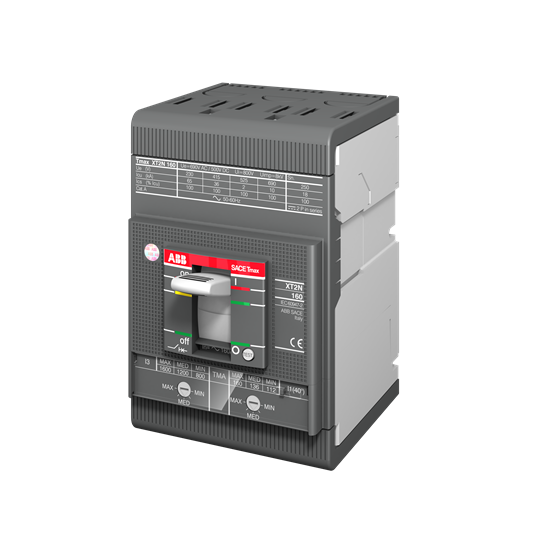

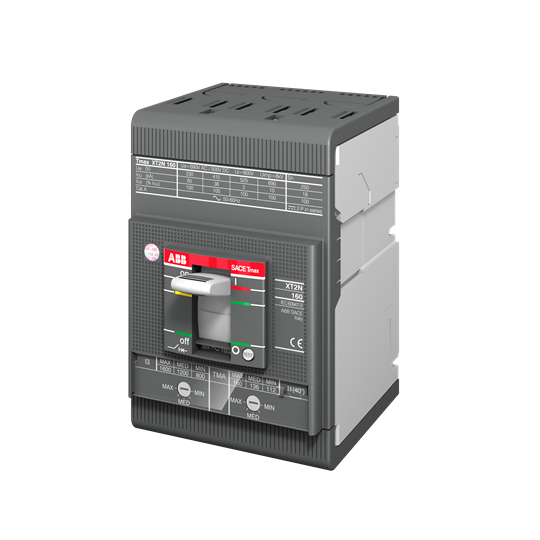

<p>The Molded Case Circuit Breaker (MCCB) detailed here is a robust and reliable solution for industrial and commercial electrical systems. Designed to cater to demanding environments, this MCCB offers a comprehensive suite of features that ensure safe and efficient operation.</p><p>With a rated current of 160 A, this MCCB is well-suited for medium-sized electrical installations. It boasts an impressive rated impulse withstand voltage of 8 kV, making it capable of handling transient overvoltages effectively. The rated insulation voltage stands at 1000 V, providing ample protection against electrical shocks and ensuring device longevity.</p><p>Operating within a range of voltages—690 VAC and 500 VDC—this MCCB demonstrates versatility across different power systems. Its thermal magnetic (TM) release type with the TMG trip unit ensures precise tripping characteristics, safeguarding your circuits from overloads and short circuits.</p><p>The breaking capacity is marked at 10 kA, which means it can interrupt fault currents up to this level without damage—a crucial feature for maintaining system integrity during fault conditions. With front connection types and bolt terminals, installation becomes straightforward while maintaining secure connections.</p><p>This device carries the IP20 degree of protection rating, indicating its ability to prevent ingress by fingers or objects greater than 12 mm in diameter—ideal for controlled indoor environments. Compliant with IEC60947-2 standards, it meets international safety requirements ensuring reliability across applications.</p><p>Compact yet powerful, the MCCB measures just 90 mm in width but delivers substantial performance with minimal power loss at only 16.15 W. Weighing in at 1.4 kg, it&#39;s lightweight enough for easy installation without compromising on sturdiness.</p><p>Designed to operate efficiently within a frequency range of 50/60 Hz, this breaker aligns seamlessly with global power systems standards. Notably suitable for use with XT2N setups, it enhances compatibility within pre-existing configurations.</p><p>The rated short circuit current capability is pegged at an impressive 480 A while offering a current setting range between 112-160 A—allowing flexibility based on specific needs or adjustments required by varying load demands. Furthermore,the main circuit connecting capacity spans from 32.5 sq-mm up to an expansive100 sq-mm accommodating diverse wiring specifications effortlessly.</p>
