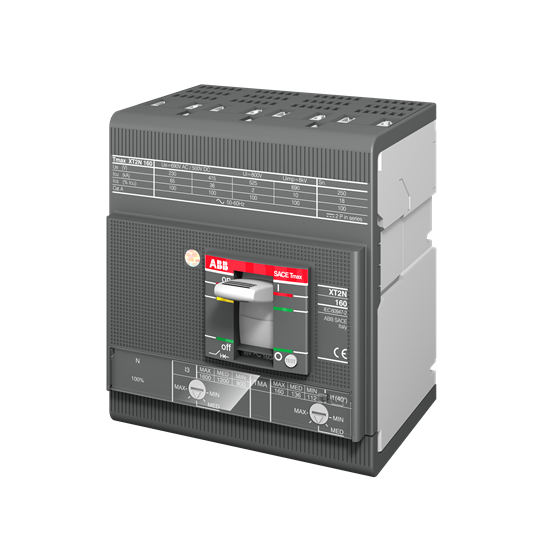

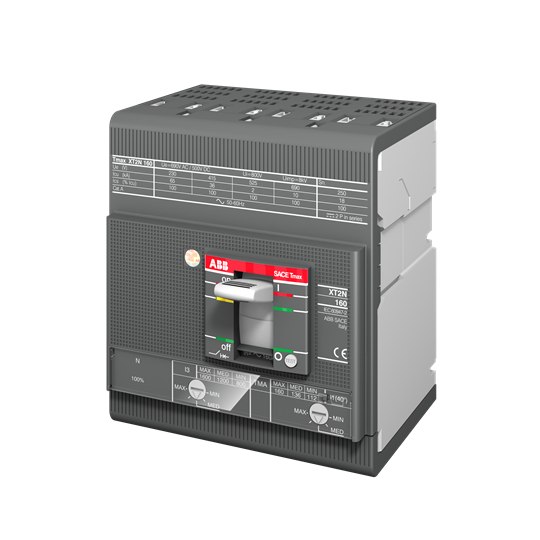

<p>When selecting a Molded Case Circuit Breaker (MCCB) for your industrial or commercial needs, it’s crucial to focus on specifications that ensure reliability and compatibility with your existing systems. This MCCB is designed to meet rigorous standards, providing robust protection and operational efficiency.</p><p>With a rated current of 100 A, this MCCB is suitable for various applications where dependable circuit protection is essential. It boasts a high breaking capacity of 70 kA, ensuring it can handle significant fault conditions without compromising safety or performance. The rated impulse withstand voltage of 8 kV adds another layer of resilience against transient overvoltages.</p><p>Designed to operate at both AC and DC voltages, this breaker supports up to 690 VAC and 500 VDC, making it versatile for different power systems. Its rated insulation voltage stands at an impressive 1000 V, reflecting its capability to maintain electrical separation under normal operating conditions.</p><p>The thermal-magnetic (TM) release type with adjustable trip unit settings (TMA) allows customization within the current setting range of 70-100 A. This adaptability ensures precise protection tailored to specific load requirements while maintaining system integrity.</p><p>Featuring four poles and front connection type, installation is straightforward and efficient. The bolt terminal type enhances secure connections while facilitating maintenance tasks. Additionally, the main circuit connecting capacity ranges from 32.5-100 sq-mm, accommodating various conductor sizes for flexible integration into existing setups.</p><p>This MCCB complies with IEC60947-2 standards, underscoring its adherence to international safety and performance benchmarks—a critical consideration in professional environments where compliance is non-negotiable.</p><p>Its compact form factor—measuring just 120 mm in width—and weight of only 1.45 kg make it an ideal choice for installations where space constraints are a concern without sacrificing functionality or durability.</p><p>Operating efficiently across frequencies of 50/60 Hz and offering IP20 degree of protection means it&#39;s well-suited for indoor use in controlled environments where exposure to dust or moisture is minimal.</p><p>Finally, this MCCB pairs seamlessly with XT2H equipment—ensuring compatibility within established systems—making it an excellent choice when considering upgrades or replacements within similar frameworks.</p>
