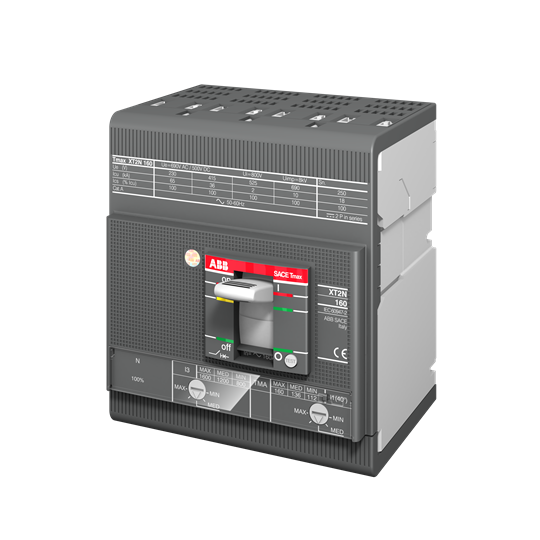

<p>When it comes to selecting a reliable Molded Case Circuit Breaker (MCCB) for industrial and commercial applications, understanding the technical specifications is crucial. This MCCB model offers a robust solution with its impressive features tailored to meet stringent safety and operational requirements.</p><p>The MCCB is designed to handle a rated current of 100 A, making it suitable for various medium-scale electrical systems. Its rated impulse withstand voltage stands at 8 kV, providing resilience against transient over-voltages typically caused by lightning strikes or switching surges. With a rated insulation voltage of 1000 V, this breaker ensures high-level protection and reliability in diverse environments.</p><p>Operating within a range of voltages—690 VAC and 500 VDC—the MCCB accommodates both alternating current (AC) and direct current (DC) applications. The thermal-magnetic (TM) release type coupled with the TMA trip unit ensures precise protection against overloads and short circuits, enhancing system safety.</p><p>A notable feature of this MCCB is its breaking capacity of 36 kA, which guarantees effective interruption of fault currents without compromising the integrity of the system. The front connection type facilitates straightforward installation and maintenance processes.</p><p>The circuit breaker&#39;s degree of protection is classified as IP20, indicating that it provides adequate protection against solid foreign objects larger than 12 mm but requires additional enclosure for complete dust-proofing in harsher conditions. It employs bolt-type terminals that ensure secure connections while accommodating main circuit connecting capacities ranging from 32.5 sq-mm to 100 sq-mm.</p><p>Measuring at a width of just 120 mm and weighing only 1.45 kg, this compact MCCB fits seamlessly into existing panels without demanding extensive space or structural modifications. It conforms to IEC60947-2 standards, reflecting its compliance with international safety regulations.</p><p>This device operates efficiently across frequencies of both 50 Hz and 60 Hz, offering versatility for different regional power systems. Additionally, it&#39;s compatible with XT2N devices, providing flexibility in integration with existing setups or future expansions.</p><p>With a power loss rating at just 8.08 W during operation, this MCCB contributes to energy efficiency efforts while maintaining optimal performance levels over time.</p><p>Overall, whether you&#39;re upgrading an existing infrastructure or setting up new installations requiring robust electrical management solutions capable of handling short circuit currents between 500 A to 1000 A safely within a current setting range adjustable from 70 A up to full capacity at exactly what you need—this MCCB delivers on all fronts effectively balancing durability functionality ease-of-use backed by rigorous standards adherence ensuring peace mind every step way!</p>
