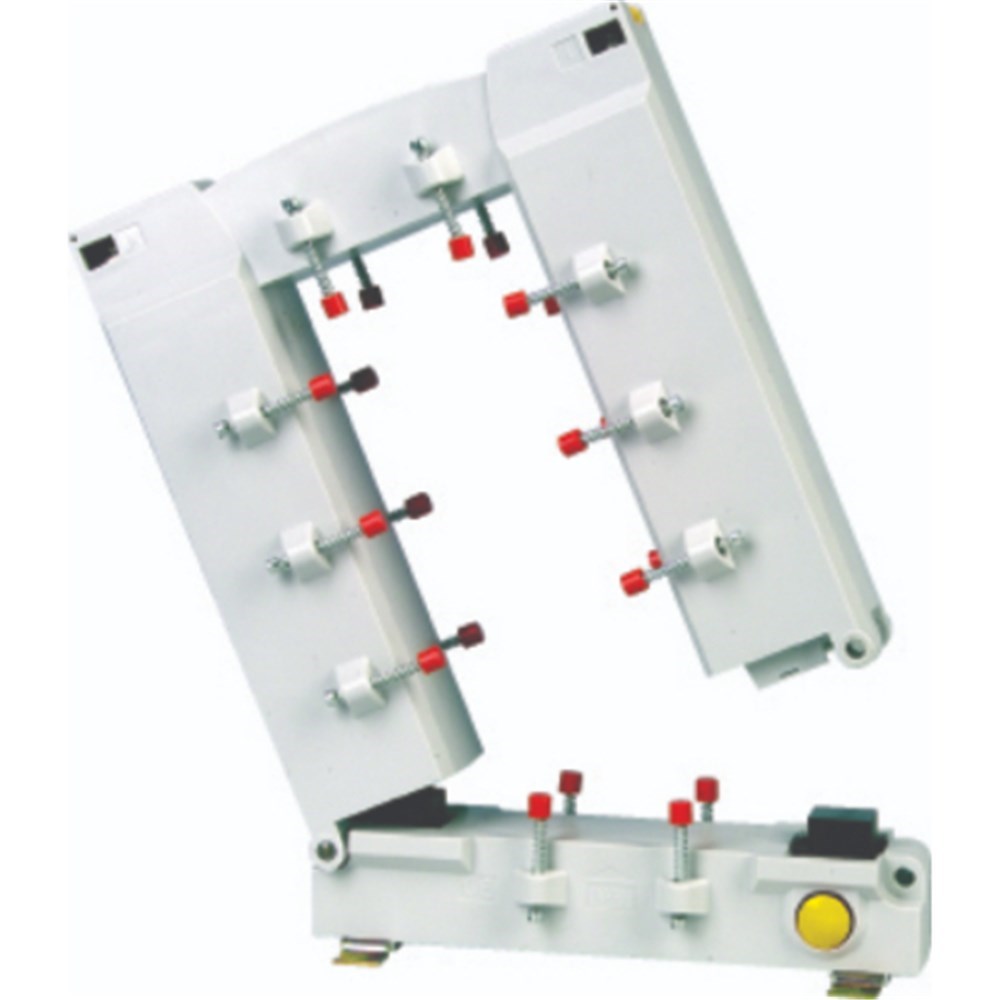

SOCOMEC SPLIT-CORE CT TO 816 3000A/5A CLASS 0,5 15VA 192T4830

The Split-core current transformer has a current ratio of 3000/5 and an accuracy class of 0.5 at 15VA. It has a dielectric quality of 3kV/1min 50Hz and insulation class E (120 °C). The transformer comes with removable terminal covers as standard. The dimensions of the TO816 type are 243Hx195Wx79Dmm with an opening of 85x165mm. It can be easily adapted to different types of mounting, including flat, DIN rail, or back plate using two screw-on metal brackets or a clip-on DIN rail fastener.
