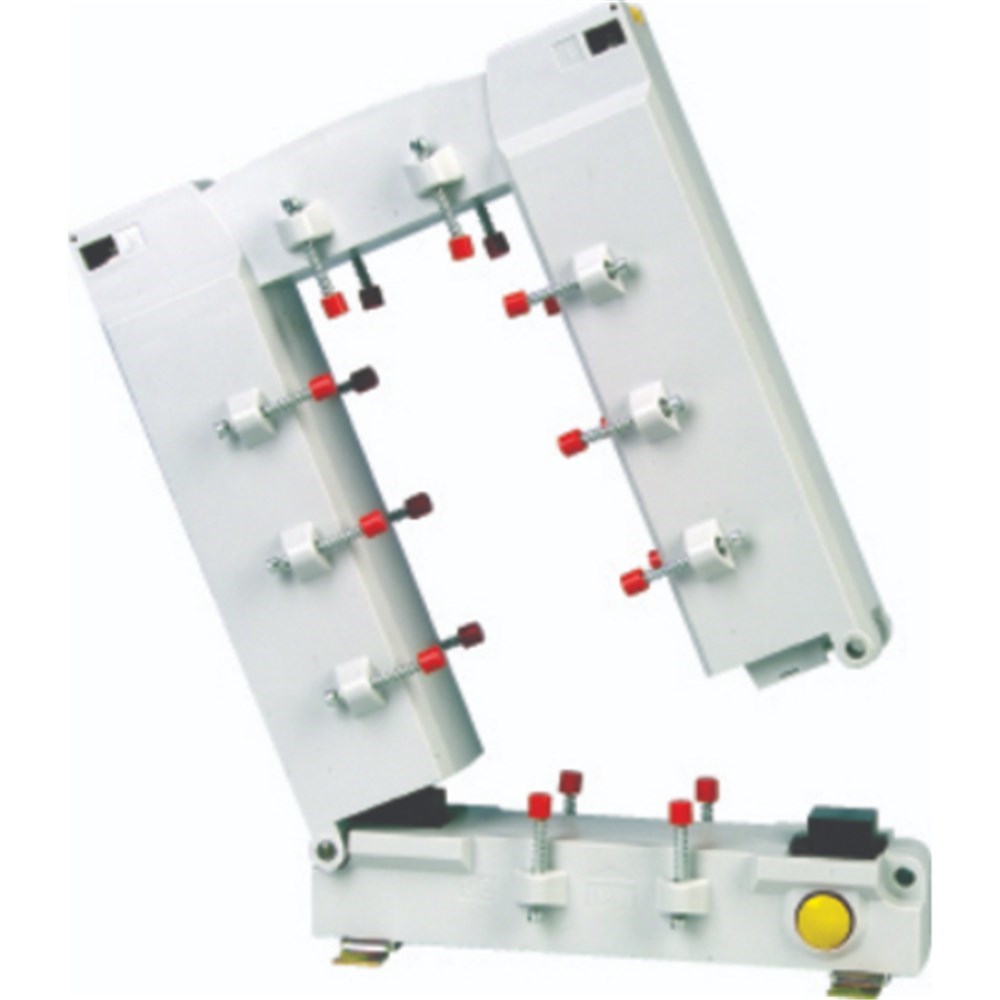

SOCOMEC SPLIT-CORE CT TO 816 2500A/5A CLASS 0,5 10VA 192T4825

The Split-core current transformer has a current ratio of 2500/5 and an accuracy class of 0.5 at 10VA. It has a dielectric quality of 3kV/1min at 50Hz and an insulation class of E (120 °C). The transformer comes with removable terminal covers as standard. The dimensions of the TO816 type are 243Hx195Wx79Dmm with an opening of 85x165mm. It can be easily adapted to any type of mounting, including flat, DIN rail, or back plate, using two screw-on metal brackets or a clip-on DIN rail fastener.
