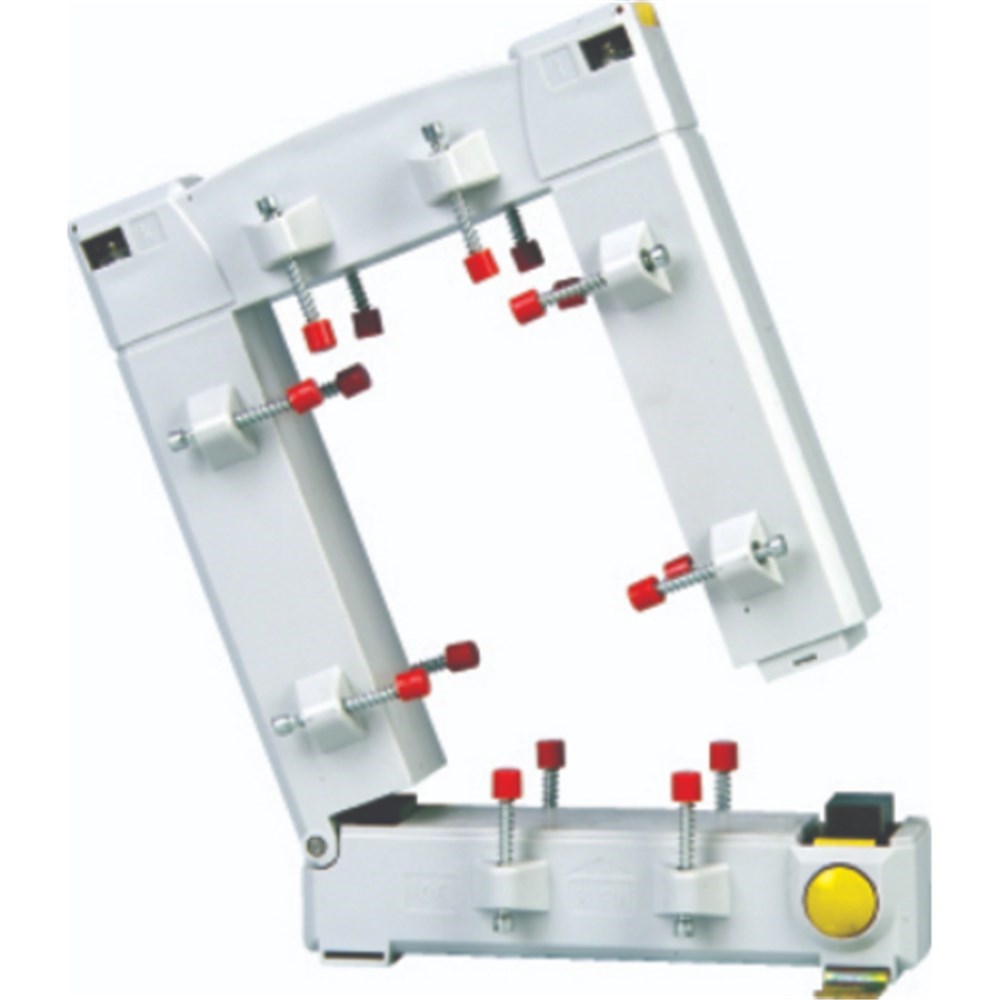

SOCOMEC SPLIT-CORE CT TO 812 800A/5A CLASS 0,5 2,5VA 192T4780

This split-core current transformer has a current ratio of 800/5 and an accuracy class of 0.5 at 2.5VA. It has a dielectric quality of 3kV/1min at 50Hz and an insulation class of E (120 °C). The transformer comes with removable terminal covers as standard. The dimensions of the TO812 type are 198Hx155Wx58Dmm with an opening of 85x125mm. It can be easily mounted in various ways, including flat, DIN rail, or back plate using two screw-on metal brackets or a clip-on DIN rail fastener.
