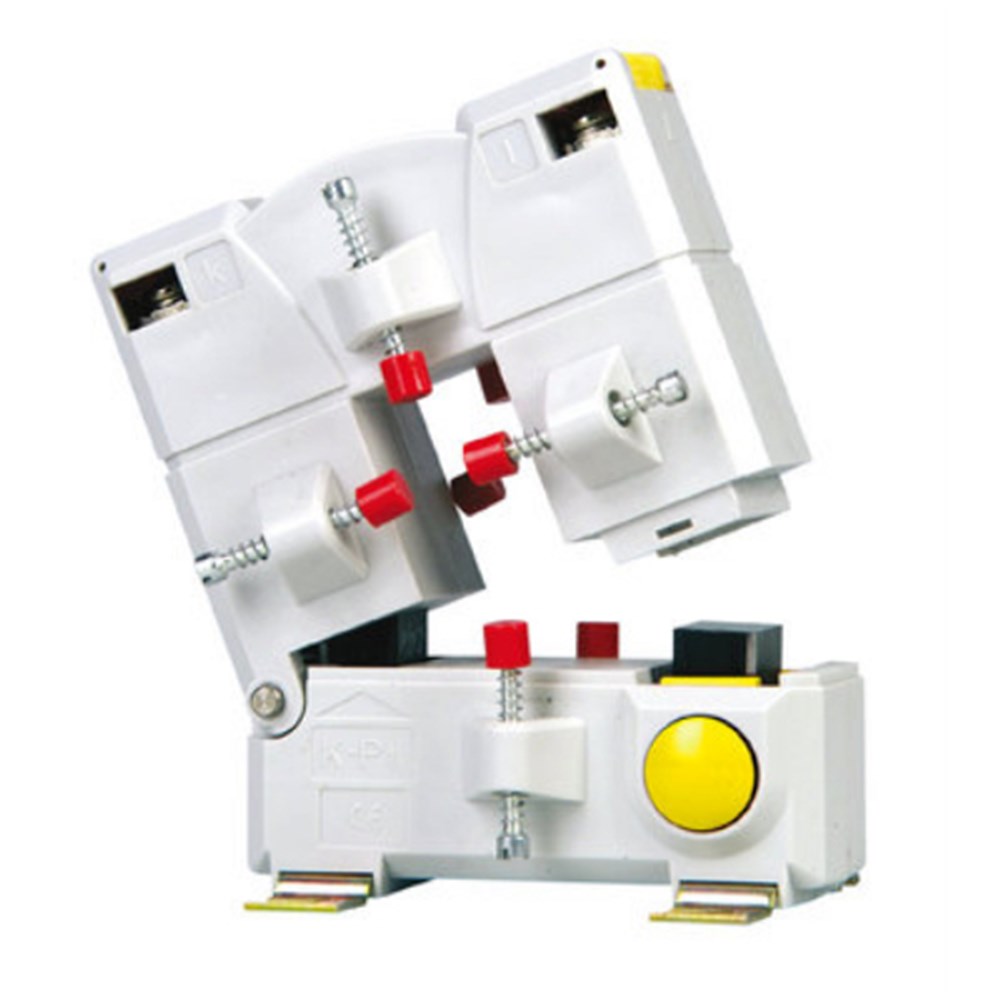

SOCOMEC SPLIT-CORE CT TO 23 100A/5A CLASS 3 1,25VA 192T4601

This split-core current transformer has a current ratio of 100/5 and an accuracy class of 3 at 1.25VA. It has a dielectric quality of 3kV/1min at 50Hz and an insulation class of E (120 °C). The transformer comes with removable terminal covers as standard. The dimensions of the TO23 type are 106Hx93Wx58Dmm with an opening size of 23x33mm. It can be easily adapted to different types of mounting, including flat, DIN rail, or back plate, using either two screw-on metal brackets or a clip-on DIN rail fastener.
