SOCOMEC BAR OR CABLE-THROUGH CT TCB3 22-30 3X250A/3X5A CLASS 1 2,5VA 192T3425

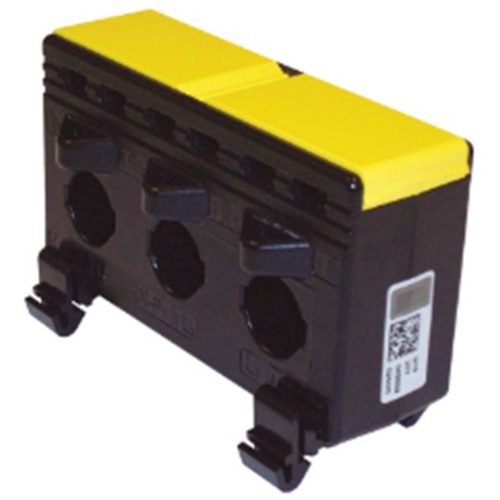

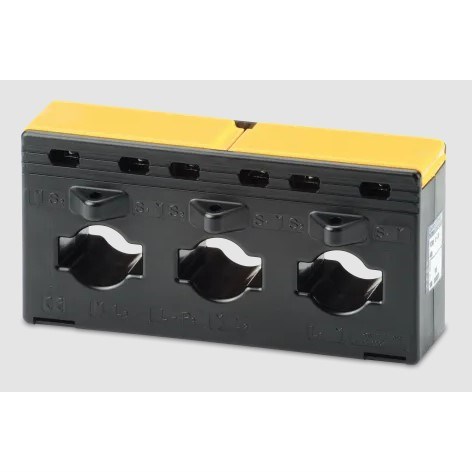

The 3 in 1 solid-core current transformer is designed for accuracy and efficiency. With a current ratio of 3x250/5 and an accuracy class of 1 at 2.5VA, it ensures precise measurements. The transformer has a dielectric quality of 3kV/1min at 50Hz and an insulation class E (120 °C), making it safe to use. This space-saving transformer is available in two frame sizes, providing flexibility for different applications. It comes equipped with removable terminal covers for easy installation and maintenance. The case material is made of durable polycarbonate. The dimensions of the transformer are 75Hx150Wx37Dmm, with a cable diameter opening of 22mm. It can be adapted to various mounting options, including flat, DIN rail, or back plate. Two screw-on metal brackets or a clip-on DIN rail fastener can be used for mounting, and the necessary mounting clips are included. Overall, this versatile current transformer offers accurate measurements, convenient installation options, and reliable performance in a compact design.
