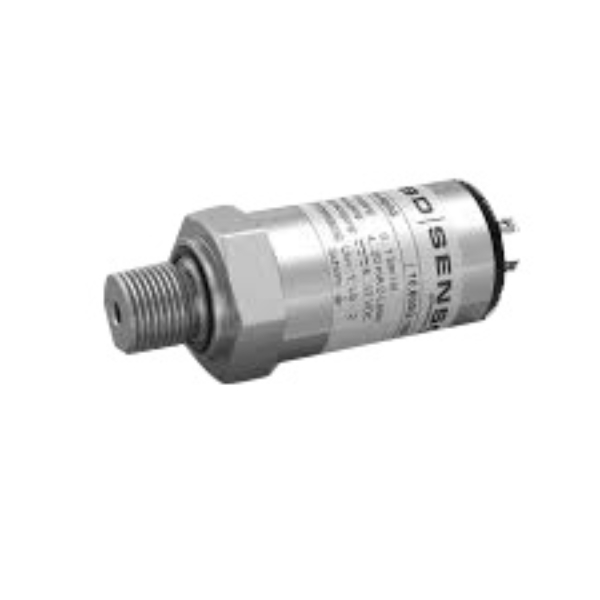

BD Sensors 18601G1601R151003003000 Pressure Transmitter

Product Code: 18601G1601R151003003000

  • Stainless steel construction for durability
  • 4-20 mA output for reliable signal transmission
  • High accuracy of +/-0.5% FSO
  • Wide temp range: -40 to 125°C
  • CE, cULus, REACH, RoHS compliant
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Pressure Transmitter
Brand BD SENSORS
Series 18.600 G
Accuracy >160 mbar, <=+/-0.5% FSO
Connection Type Electrical - male and female plug ISO 4400, Mechanical - G1/4" DIN 3852
Electrical Connection Male and Female Plug ISO 4400
Mechanical Connection G1/4 in DIN 3852
Mechanical Life 10000000 Operations
Operational Temperature -40 to 125 deg C
Output Type 4-20 mA
Rated Pressure 1.6 bar
Response Time <=10 ms
Seal Material FKM
Shock Resistance 100 g/1 ms
Standards and Approvals CE, cULus, REACH, RoHS

Description

<p>The Stainless Steel Sensor from the 18.600 G series is a robust and reliable choice for industrial and commercial applications, particularly those requiring precise pressure measurement. This sensor operates with an output type of 4-20 mA, ensuring compatibility with a wide range of control systems.</p><p>Designed to withstand challenging environments, it boasts an impressive operational temperature range from -40 to 125 degrees Celsius. This makes it suitable for use in both extremely cold and hot conditions without compromising performance or accuracy.</p><p>Its accuracy is notable at greater than 160 mbar with a precision of +/-0.5% Full Scale Output (FSO), providing confidence in its measurements across various applications. Additionally, the sensor&amp;#39;s rated pressure capacity stands at 1.6 bar, making it versatile for many pressure sensing tasks.</p><p>For those concerned about durability, this sensor offers excellent shock resistance up to 100 g/1 ms and a mechanical life expectancy of ten million operations. These features ensure longevity and reliability even in high-vibration settings.</p><p>The mechanical connection is standardized with a G1/4 inch DIN 3852 interface, facilitating straightforward integration into existing systems. Electrical connections are made via male and female plugs conforming to ISO 4400 standards, promoting ease of installation and maintenance.</p><p>With a rapid response time of less than or equal to 10 milliseconds, the sensor quickly reacts to changes in pressure—ideal for dynamic environments where real-time data is crucial.</p><p>Seal integrity is maintained using FKM material known for its chemical resistance and durability under harsh conditions. The product complies with important standards such as CE, cULus, REACH, and RoHS certifications which underscore its commitment to safety and environmental considerations.</p><p>This stainless steel sensor delivers on performance while adhering to rigorous industry standards—a reliable choice for professionals seeking precision instrumentation that stands up over time within demanding settings.</p>

Documents

  • IPD Product Catalogue

    IPD Product Catalogue V17
