Product Code: 160891

The Stahl 9196 Series HART Termination Board Ispac is a robust solution for hazardous area automation interfaces, offering 16 channels compatible with both analog input and output signals. This board facilitates seamless integration with HART-multiplexers and ensures stable operation with a nominal auxiliary supply voltage of 24 V DC, complete with polarity reversal protection. Designed to accommodate a variety of applications, it supports 2-, 3-, or 4-conductor setups as well as transmitters and positioners. Engineered for resilience, it operates effectively within a temperature range of -20°C to +70°C and maintains an IP20 rating. Certified for use in Zone 2 and Division 2 areas, the board also comes in variants that offer signal conversion options to meet diverse operational requirements.

Maximum Continuous Voltage DC (V)	24
Maximum Temperature (°C)	70
Minimum Temperature (°C)	-20
No. of Analogue Inputs	16
No. of Analogue Outputs	16
No. of Channels	16
No. of IO	16
Nominal Voltage DC (V)	Auxiliary - 24
Rated Maximum Operational Voltage DC (V)	24
Brand	STAHL
Communication Protocols	MODBUS
Ambient Temperature Range (°C)	-20 to +70
Application	Application range (zones) - 2
Cable Cross Section (mm²)	0.14 - 1.5
Certifications	IECEx, ATEX, Fmus, cFM
Connection Type	Screw Terminal
Degree of Protection	IP20
Dimensions (mm)	80W x 70H x 125D
Enclosure Material	Polyamide
Mounting Type	DIN Rail
Series	9196
Standards and Approvals	ATEX/IECeX

Hazardous Area Intrinsically Safe Isolators

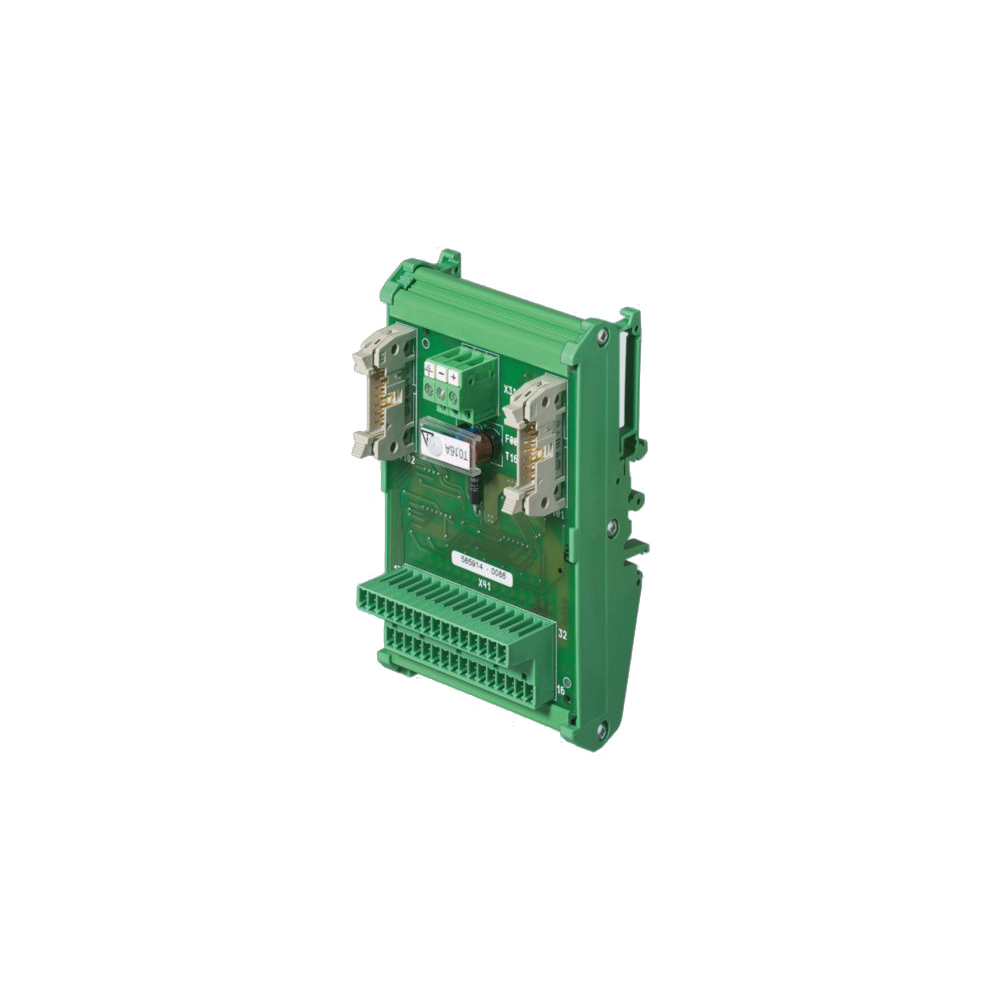

STAHL 9196/16H-XX0-03C HART TERMINATION BOARD ISPAC 160891
