Product Code: 158905

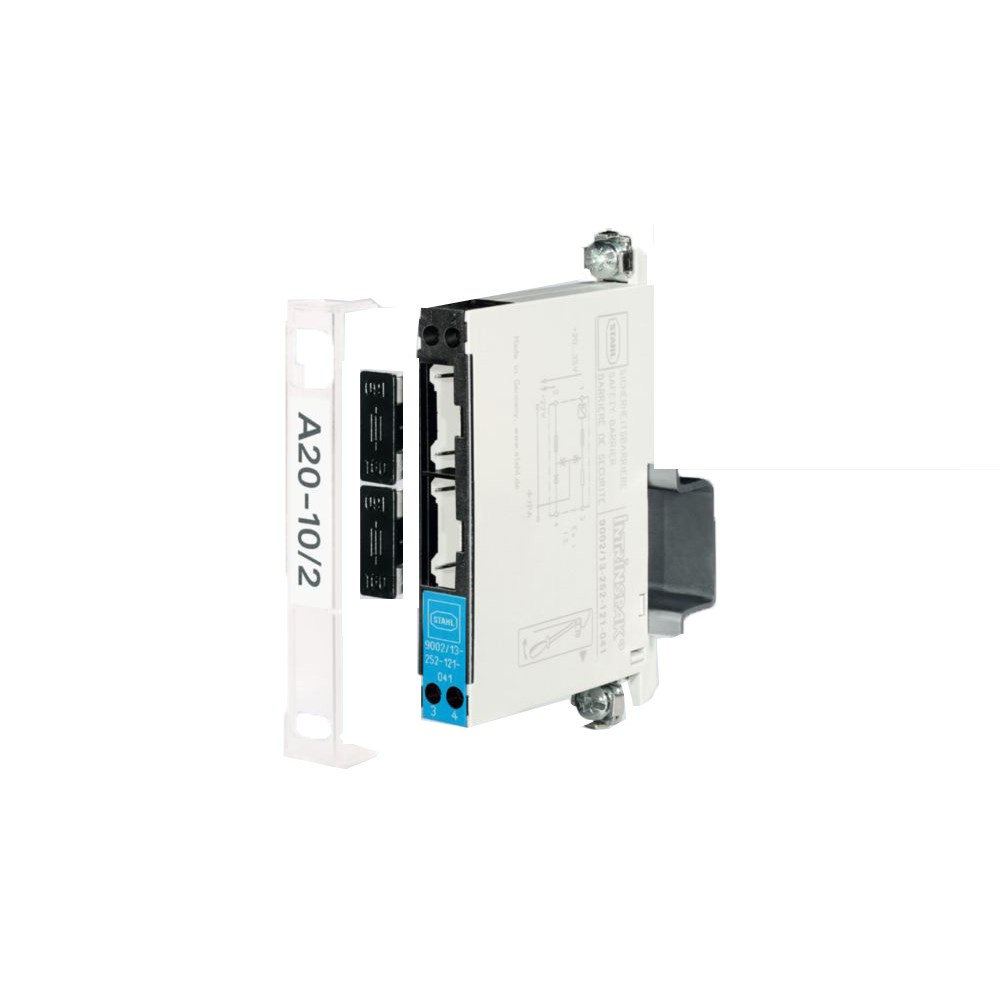

Ensure the safety and efficiency of your hazardous area operations with Stahl's Series 9002 dual-channel safety barriers. These compact, space-saving devices are designed for easy DIN rail installation, suitable for Zone 2 and safe areas, operating within a temperature range of -20 to 60°C. With an IP40 rating, they provide reliable intrinsically safe operation for a variety of equipment including HART transmitters, solenoid valves, sensors, and zero-potential contacts. The quick-install feature allows these barriers to be snapped onto the DIN rail while simultaneously connecting to ground using ISA - RPI12.06 standards. Optimize your automation interfaces and solutions in hazardous environments with Stahl's trusted technology.

Maximum Power (mW)	50
Maximum Temperature (°C)	60
Maximum Voltage (V)	9.3
Minimum Temperature (°C)	-20
No. of Channels	2
Voltage Type	AC/DC
Brand	STAHL
Ambient Temperature Range (°C)	-20 to +60
Application	Application range (zones) - 2, suitable for voltage sources such as thermocouple, strain gauge signal
Cable Cross Section (mm²)	Maximum - 1.5, Earthing - 4
Cable Type	Finely stranded, solid
Certifications	IECEx, ATEX, FMus, ULus, EAC
Degree of Protection	IP40
Dimensions (mm)	103W x 12H x 72D
Enclosure Material	Polyamide
Maximum Current (A)	0.02
Mounting Type	DIN Rail
Series	9002
Standards and Approvals	ATEX/IECeX
Tightening Torque (Nm)	0.5 - 0.6
