Product Code: 132640

Explore the Stahl Series 8082 contact element, designed for hazardous area applications. This robust Ex E component features a single normally open (NO) positive opening contact, ensuring reliable operation and safety. It is rated for use with voltages ranging from 24 to 550 VAC and can handle currents up to 10,000 A. Built to withstand extreme temperatures from -60°C to +100°C and equipped with an IP20 rating, this contact element is engineered for resilience in challenging environments.

Maximum Temperature (°C)	100
Minimum Temperature (°C)	-60
Rated Operational Current (A)	0.15/10
Switching Capacity AC-12	250V/10A, 400V/7.5A, 550V/5A
Switching Capacity AC-15	110V/10A, 250V/6A, 400V/4A
Switching Capacity DC-13	60V/6A
Switching Capacity DC-132	230V/1A, 110V/2.5A
Brand	STAHL
Ambient Temperature Range (°C)	-60 to +70
Application	Application range (zones) - 1, 2
Cable Cross Section (mm²)	0.75 - 2.5
Certifications	IECEx, ATEX, UL
Connection Type	Screw Terminal
Contact Material	Silver-Nickel
Contacts	1NO
Degree of Protection	IP20
Enclosure Material	Polyamide
No. of Poles	1
Operational Temperature Range (°C)	-60 to +100
Rated Operational Voltage (V)	24 - 550
Series	8082
Standards and Approvals	ATEX/IECeX
Tightening Torque (Nm)	1.2

Hazardous Area Control Boxes

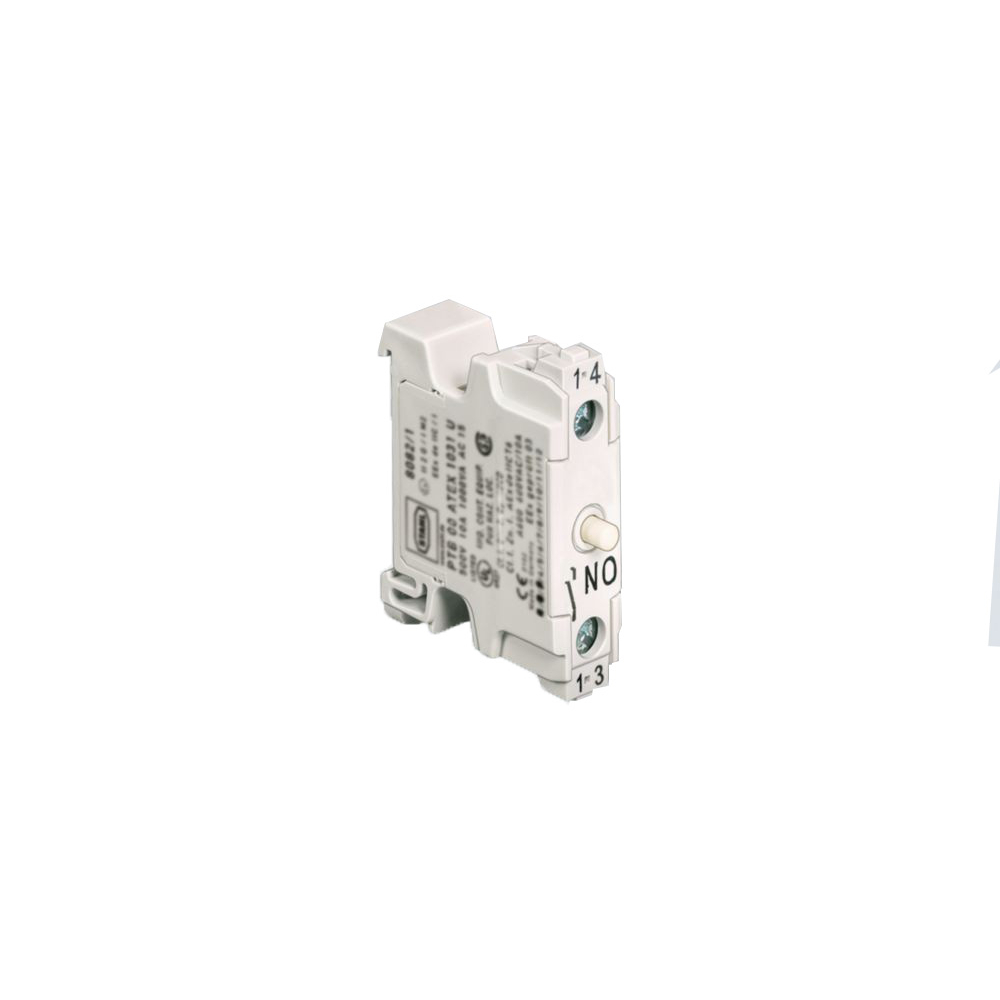

STAHL 8082/1-2-00 CONTACT ELEMENT 132640

Product Code: 132640
