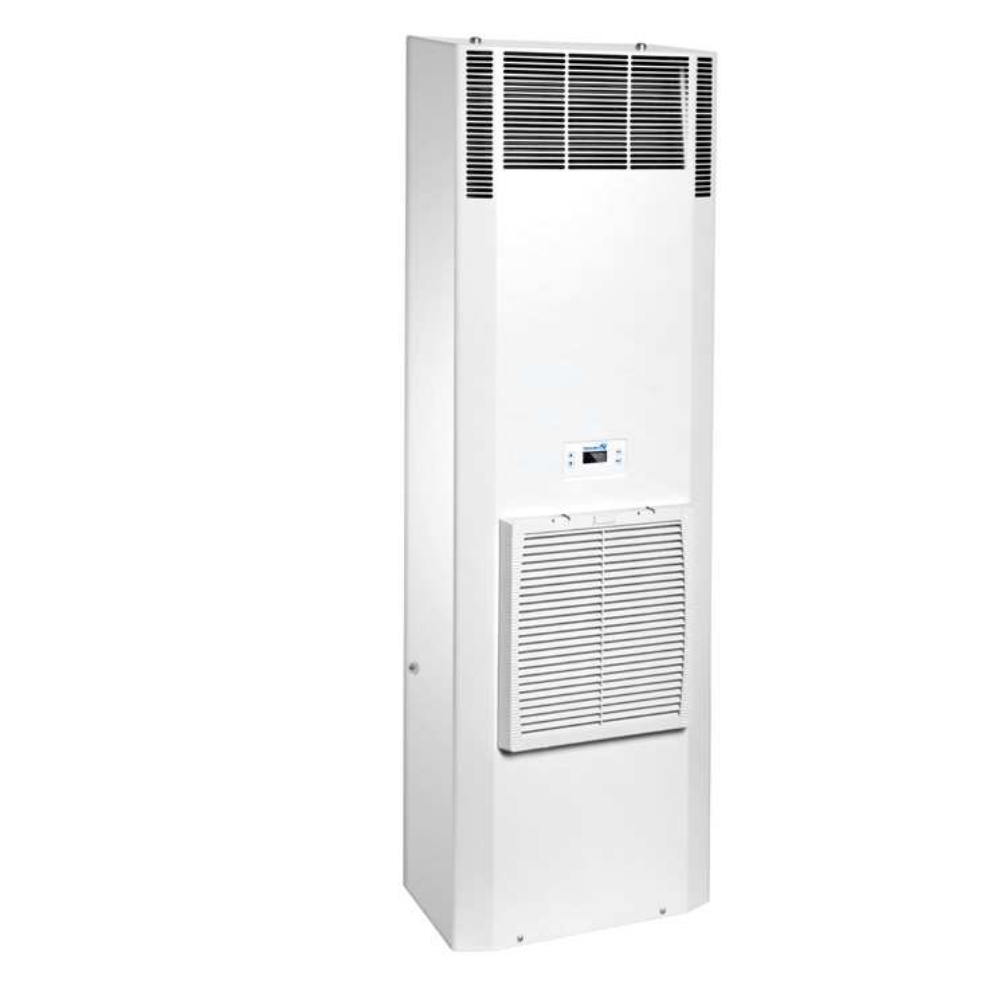

PFANNENBERG DTS 8441E 230V CSC 7035 CM, 2000W, IP54 WALL MOUNTED COOLING UNIT 13088490066

Product Code: 13088490066

Explore the Pfannenberg DTS Series Cooling Units, designed for optimal thermal management. These units offer a cooling capacity ranging from 300 to 2500 W in accordance with EN 14511 (A35/A35) standards. They are versatile with a rated voltage of either 230 VAC or 400 VAC, equipped with an integrated condensate management system (*CM). The airflow is robust and unimpeded, boasting internal rates of 224 to 1520 m³/h and external rates matching at 282 to 1520 m³/h. Engineered for reliability, these cooling units operate within a control range of +25°C to +45°C and are built to withstand demanding environments with an IP54 rating. The sleek design is finished in RAL 7035, blending seamlessly into industrial settings. Trust in the quality that Pfannenberg brings to thermal management solutions with their DTS series where efficiency meets durability.

Technical Specifications

Cooling Capacity (W) 2000
Cover Steel powder coated
Maximum Temperature (°C) 55
Minimum Temperature (°C) 15
Noise Level (dBA) ≤66
Rated Maximum Operational Voltage AC (V) 253
Rated Minimum Operational Voltage AC (V) 207
Rated Operational Power (kW) 2
Starting Current (A) 15
Unimpeded Airflow - External 1340
Unimpeded Airflow - Internal 1000
Brand PFANNENBERG
Ambient Temperature Range (°C) +15 to +55
Colour RAL7035
Current Consumption (A) 5.8
Degree of Protection IP54
Dimensions (mm) 400W X 1350H X 200D
Housing Material Galvanised sheet steel
Mounting Type Door/Side
Operational Temperature Range (°C) +15 to +55
Power Consumption (W) 734
Rated Frequency (Hz) 50/60
Rated Power (W) 2000
Rated Voltage AC (V) 230± 10%
Series DTS
Terminal Type Spring-type
