MERSEN 10G01 FUSE LINK 1A 500VAC/250VDC FERRULE 10X38mm 120kA B212061

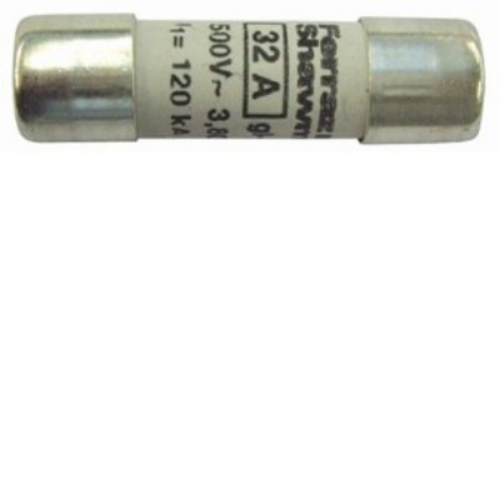

10G IEC cylindrical ferrule fuse links are designed to protect lines, cables, motors, and LV networks in electrical distribution circuits and industrial applications. They can limit and cut off overcurrents and short-circuit currents up to their nominal breaking capacity. These fuses have a reduced size but provide full range protection. They also have a visual indication of fuse operation. The utilisation category is gG, and they comply with standards IEC 60269-1&2 and BS88-1. The breaking capacity is certified to 120kA. The rated current is 1A, and the rated voltages are 500VAC/250VDC. The body size of these fuses is 10x38 mm.
