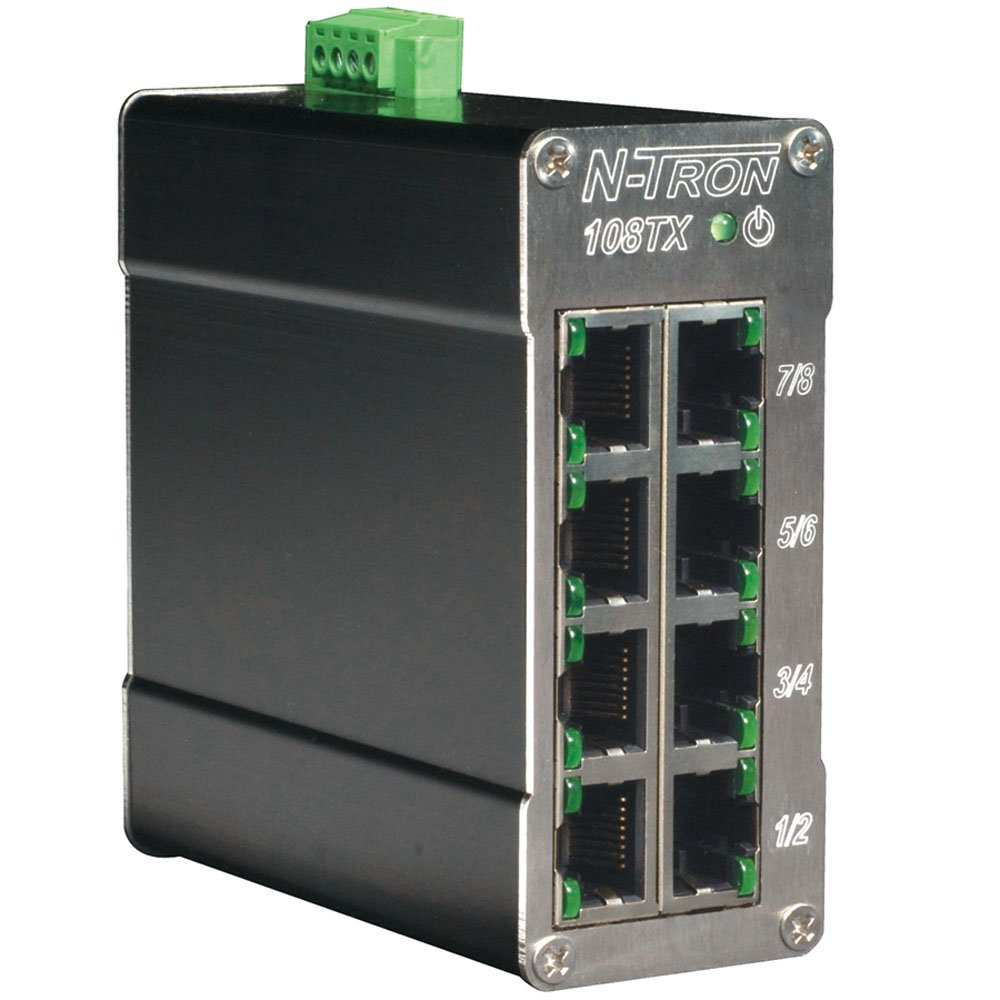

Red Lion 108TX Industrial Ethernet Unmanaged Switch

Product Code: 108TX

  • Unmanaged device with DIN rail mounting
  • Wide voltage range: 10-30 VDC
  • Compact size: 38x89x90 mm (WxHxD)
  • Robust IP65 protection rating
  • Operates in -40 to 70°C environments
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Industrial Ethernet Unmanaged Switch
Brand RED LION
Series ANT
Connector Type RJ45
Degree of Protection IP65
Depth 90 mm
Height 89 mm
Humidity 10-95%
Mounting Type DIN Rail
Number of Ethernet Ports 8
Operational Temperature -40 to 70 deg C
Rated Current 250 mA
Rated Voltage 10-30 VDC
Standards and Approvals FCC Title 47 Part 15 Class A, ICES-003 Class A, CE, EN61000-6-2:2001, EN61000-6-4:2001, EN61000-4-2, 3, 4, 5, 6, EN55011:1998+A1: 1999+A2: 2002-Class A, UL Listed (US and Canada) 1604
Width 38 mm

Description

<p>When selecting industrial equipment, it&amp;#39;s crucial to consider technical specifications that align with your operational needs. This unmanaged device is designed for seamless integration into various systems, offering reliability and efficiency in diverse environments.</p><p>Operating within a rated voltage range of 10-30 VDC, this product ensures flexibility across different power supply conditions. Its compact design features dimensions of 38 mm in width, 89 mm in height, and 90 mm in depth, making it ideal for installations where space is at a premium. The DIN Rail mounting type further simplifies installation and maintenance processes.</p><p>Engineered to withstand challenging conditions, the product boasts an impressive operational temperature range from -40 to 70 degrees Celsius. This makes it suitable for both extreme cold and hot environments without compromising performance. Additionally, its humidity tolerance spans from 10% to 95%, ensuring reliable operation even in moist settings.</p><p>The device&amp;#39;s IP65 degree of protection signifies robust resistance against dust ingress and water jets from any direction. This level of durability enhances its suitability for industrial applications where exposure to harsh elements is common.</p><p>Compliance with stringent standards and approvals underscores the product&amp;#39;s quality and safety credentials. It meets FCC Title 47 Part 15 Class A requirements along with ICES-003 Class A standards for electromagnetic compatibility. European compliance is assured through CE marking as well as adherence to EN61000-6-2:2001 and EN61000-6-4:2001 directives among others.</p><p>With a rated current of just 250 mA, this device efficiently manages power consumption while delivering consistent performance. The UL Listing (US and Canada) underlines its safety assurance across North American markets.</p><p>In summary, if you&amp;#39;re seeking an unmanaged solution that combines compactness with resilience under demanding conditions, this product merits consideration due to its comprehensive feature set tailored for industrial use cases.</p>

Documents

  • IPD Product Catalogue

    IPD Product Catalogue V17
