Product Code: 106FXE2-SC-15

Enhance your network solutions with the Red Lion ANT series Penta-band Cellular Monopole. This versatile antenna covers a wide frequency range from 800 MHz to 2200MHz, supporting multiple cellular technologies including GSM, CDMA, HSPA, and UMTS. Designed for durability and flexibility, it features a rotatable hinge design for optimal signal reception and an SMA Male connection for easy integration into your existing setup. Ideal for engineers looking to improve communication in their switches and network systems.

Current Consumption (mA)	270 at 24VDC
DIN Rail Width (mm)	35
Maximum Temperature (°C)	85
Minimum Temperature (°C)	-40
No. of 100Mb Ports	2
No. of Ethernet Ports	4
Nominal Power (W)	10
Brand	RED LION
Cable Type	FX Cable - Single Mode (Max. 15km)
Connector Type	FX Port - SC
Degree of Protection	IP65
Dimensions (mm)	89H x 38W x 90D
Mounting Type	DIN Rail
No. of Ports	4 x 10/100BASE-TX RJ45, 2 x 100BASE-FX
Operational Temperature Range (°C)	-40 to +70
Rated Operational Voltage DC (V)	10 -30
Series	ANT
Standards and Approvals	ATEX/IECeX
Switch Type	Switch - Unmanaged

Ethernet Switches

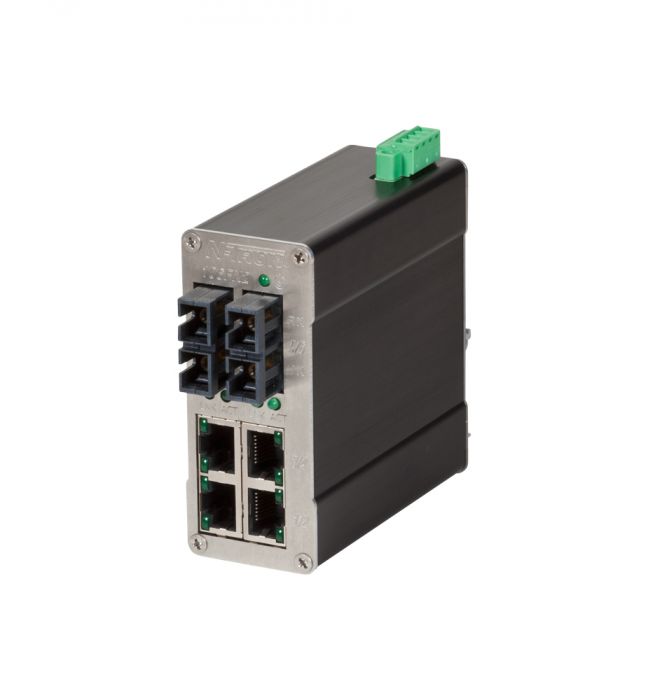

RED LION 6 PORT UNMANAGED INDUSTRIAL ETHERNET SWITCH 106FXE2-SC-15

Product Code: 106FXE2-SC-15

Technical Specifications
