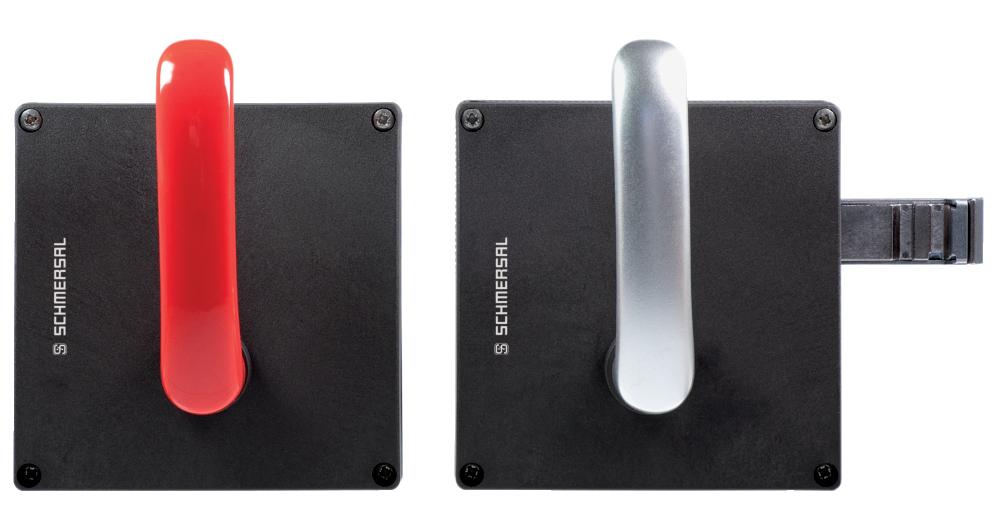

SCHMERSAL AZ/AZM201-B30-LTAG1P1 SOLENOID INTERLOCK 103013498

Product Code: 103013498

Ensure the safety and functionality of your machinery with the Schmersal AZM201 series solenoid interlock. This robust actuator is designed for hinged guards, featuring an emergency exit handle for quick disengagement. Optimized for left-hinged doors, it mounts externally and measures 60x115x115 mm for a compact fit. As part of Schmersal's commitment to machine safety, this actuator delivers reliable performance in securing access points.

Technical Specifications

eCl@ss Number, Version 11.0 27-27-24-02
eCl@ss Number, Version 9.0 27-27-24-02
ETIM 6.0 EC002544
ETIM 7.0 EC002593
Explosion Protection Category 3D | 3G
Gross Weight (g) 55
Minimum Ambient Temperature (°C) -30
Net Weight (g) 60
Utilisation Category AC-15 230 VAC
Utilisation Category DC-13 24 VDC
Brand SCHMERSAL
Degree of Protection IP66 / IP67
EAN 4030660000000
Enclosure Material Thermoplastic, Polyamide PA 6 GF
Maximum Ambient Temperature (°C) 50
Series AZM201
Standards EN IEC 60947-5-1 / BG-GS-ET-19
Terminal Type Screw terminals M20 x 1.5 | rigid or flexible
