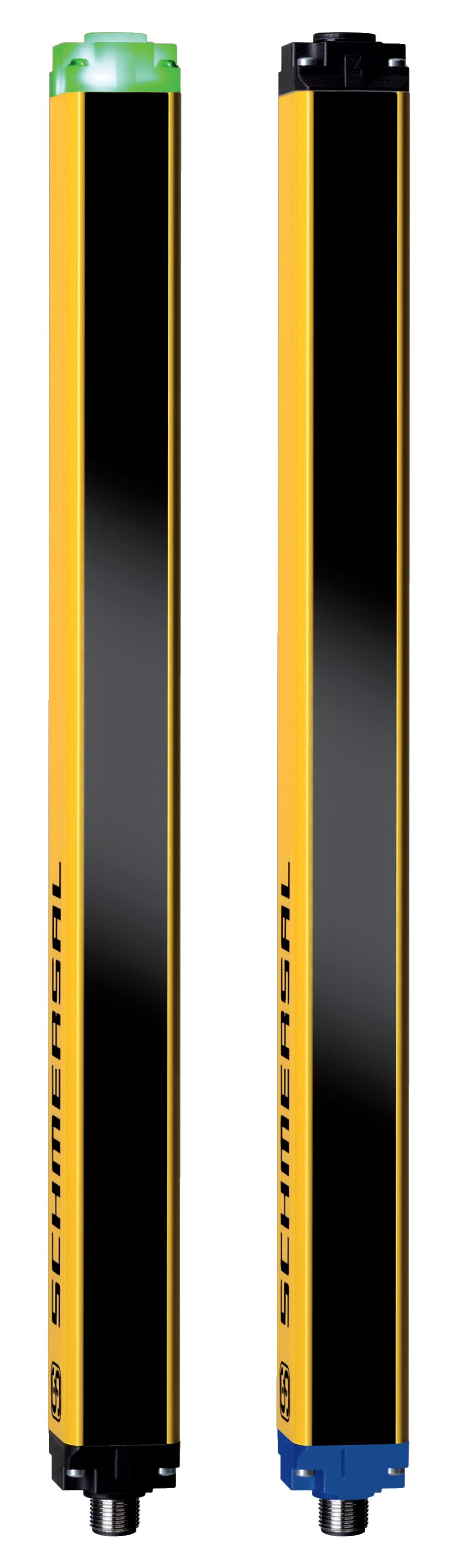

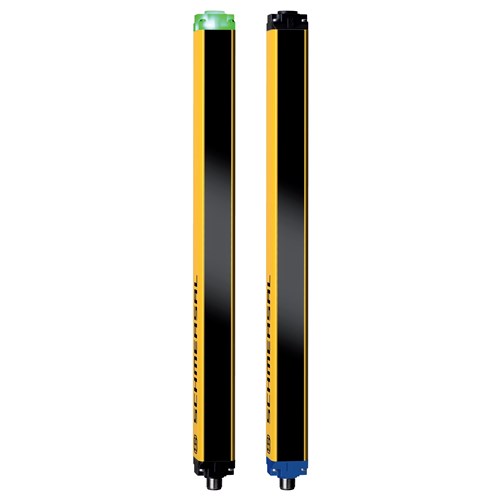

SCHMERSAL SLC440COM-ER-1690-30 SAFETY LIGHT CURTAIN 103003957

Product Code: 103003957

Enhance your machine safety with the Schmersal SLC Series Safety Light Curtains. Designed for reliability, this system features 84 beams and a detection ability of 30 mm, ensuring precise object recognition. The protection field stands at a height of 1690 mm, providing extensive coverage. With integral system diagnostics and a restart interlock function, it ensures continuous safety monitoring and controlled access when needed. This unit is equipped with two fail-safe digital outputs and utilizes a convenient terminal connector for easy integration. Operating on a standard 24 VDC and with an energy-efficient power consumption of just 10 W, it's an ideal choice for safeguarding personnel around machinery without compromising on performance or energy use.

Technical Specifications

eCl@ss Number, Version 11.0 27-27-26-02
eCl@ss Number, Version 9.0 27-27-06-09
ETIM 6.0 EC002593
ETIM 7.0 EC002592
Gross Weight (g) 1540
Maximum Temperature (°C) 50
Minimum Ambient Temperature (°C) -30
Minimum Temperature (°C) -10
Net Weight (g) 1640
Nominal Power (W) 10
Rated Maximum Operational Voltage DC (V) 24
Sensor Height (mm) 166.7
Sensor Length (mm) 33
Utilisation Category AC-15 230 VAC
Utilisation Category DC-13 24 VDC
Brand SCHMERSAL
Degree of Protection IP67
EAN 4030660000000
Enclosure Material Plastic, glass-fibre-reinforced
Maximum Ambient Temperature (°C) 90
Minimum Mechanical Life 20000000 Operations
Series SLC
Standards EN IEC 60947-5-1 / EN ISO 13849-1 / BG-GS-ET-15
Terminal Type Cable
