Product Code: 103003948

Enhance your machine safety with the Schmersal SLC Series Safety Light Curtains. Designed for reliability, this system features 48 beams and a protection field height of 970 mm, ensuring comprehensive coverage. Its detection capability is precise at 30 mm, perfect for safeguarding against access into hazardous zones. The unit includes a restart interlock and integral system diagnostics for added security and maintenance ease. With two fail-safe digital outputs and a convenient connector terminal, integration is straightforward. Operating on a low energy consumption of just 10 W at 24 VDC, it's an efficient addition to any safety protocol in industrial settings.

eCl@ss Number, Version 11.0	27-27-26-02
eCl@ss Number, Version 9.0	27-27-06-90
ETIM 6.0	EC002592
ETIM 7.0	EC002591
Gross Weight (g)	2840
Maximum Temperature (°C)	50
Minimum Ambient Temperature (°C)	-30
Minimum Temperature (°C)	-10
Net Weight (g)	840
Nominal Power (W)	10
Rated Maximum Operational Voltage DC (V)	24
Sensor Height (mm)	30
Sensor Length (mm)	33
Utilisation Category AC-15	230 VAC
Utilisation Category DC-13	24 VDC
Brand	SCHMERSAL
Degree of Protection	IP67
EAN	4030660000000
Enclosure Material	Light alloy die-casting
Maximum Ambient Temperature (°C)	90
Minimum Mechanical Life	10000000 Operations
Series	SLC
Standards	EN IEC 60947-5-1 / BG-GS-ET-19
Terminal Type	Screw terminals M20 x 1.5

Presence Sensing Safety Devices

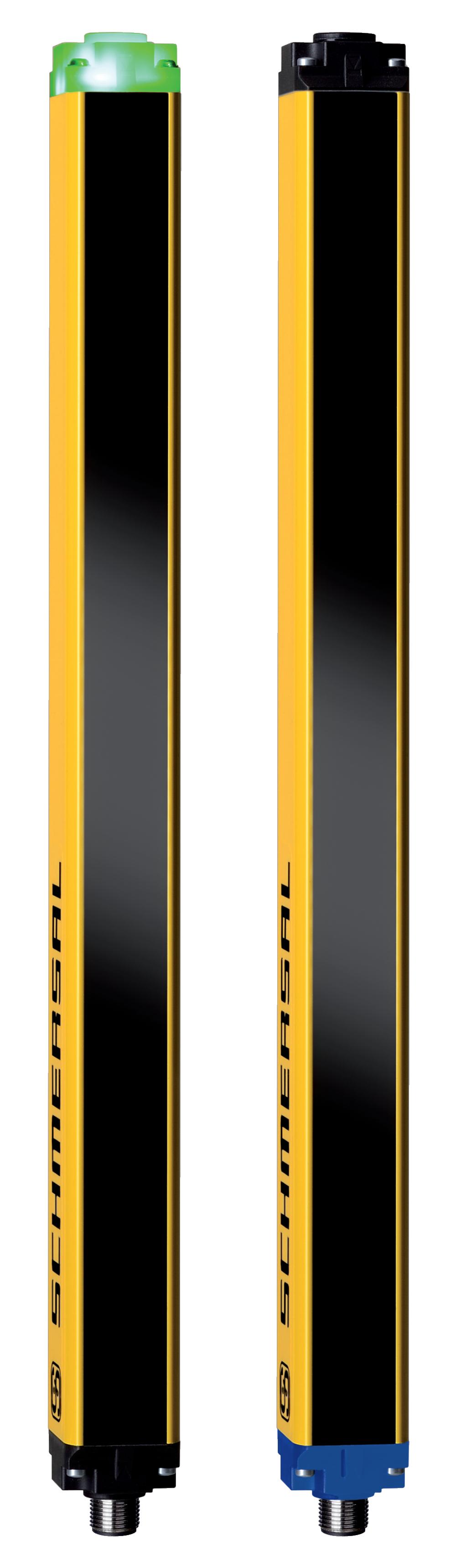

SCHMERSAL SLC440COM-ER-0970-30 SAFETY LIGHT CURTAIN 103003948

Product Code: 103003948
