eCl@ss Number, Version 11.0	27-27-01-05
eCl@ss Number, Version 9.0	27-37-18-19
ETIM 6.0	EC002592
ETIM 7.0	EC001449
Gross Weight (g)	115
Minimum Ambient Temperature (°C)	-25
Net Weight (g)	430
Sensor Height (mm)	220
Sensor Length (mm)	50
Utilisation Category AC-15	240 VAC
Utilisation Category DC-13	24 VDC
Brand	SCHMERSAL
Degree of Protection	IP66 / IP67
EAN	4030660000000
Enclosure Material	Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
Maximum Ambient Temperature (°C)	80
Minimum Mechanical Life	10000000 Operations
Standards	EN IEC 60947-5-1 / EN ISO 13849-1 / BG-GS-ET-15
Terminal Type	Screw terminals

Presence Sensing Safety Devices

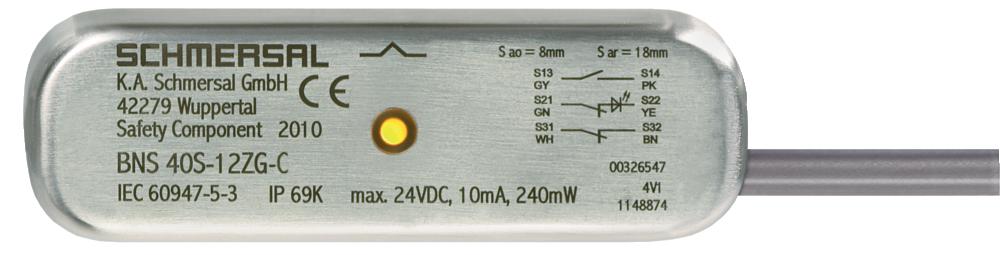

SCHMERSAL MAGNETIC SAFETY SENSOR 103000644
