SCHMERSAL AZ 3350-B1 SAFETY SWITCH WITH SEPARATE ACTUATOR 101214015

Product Code: 101214015

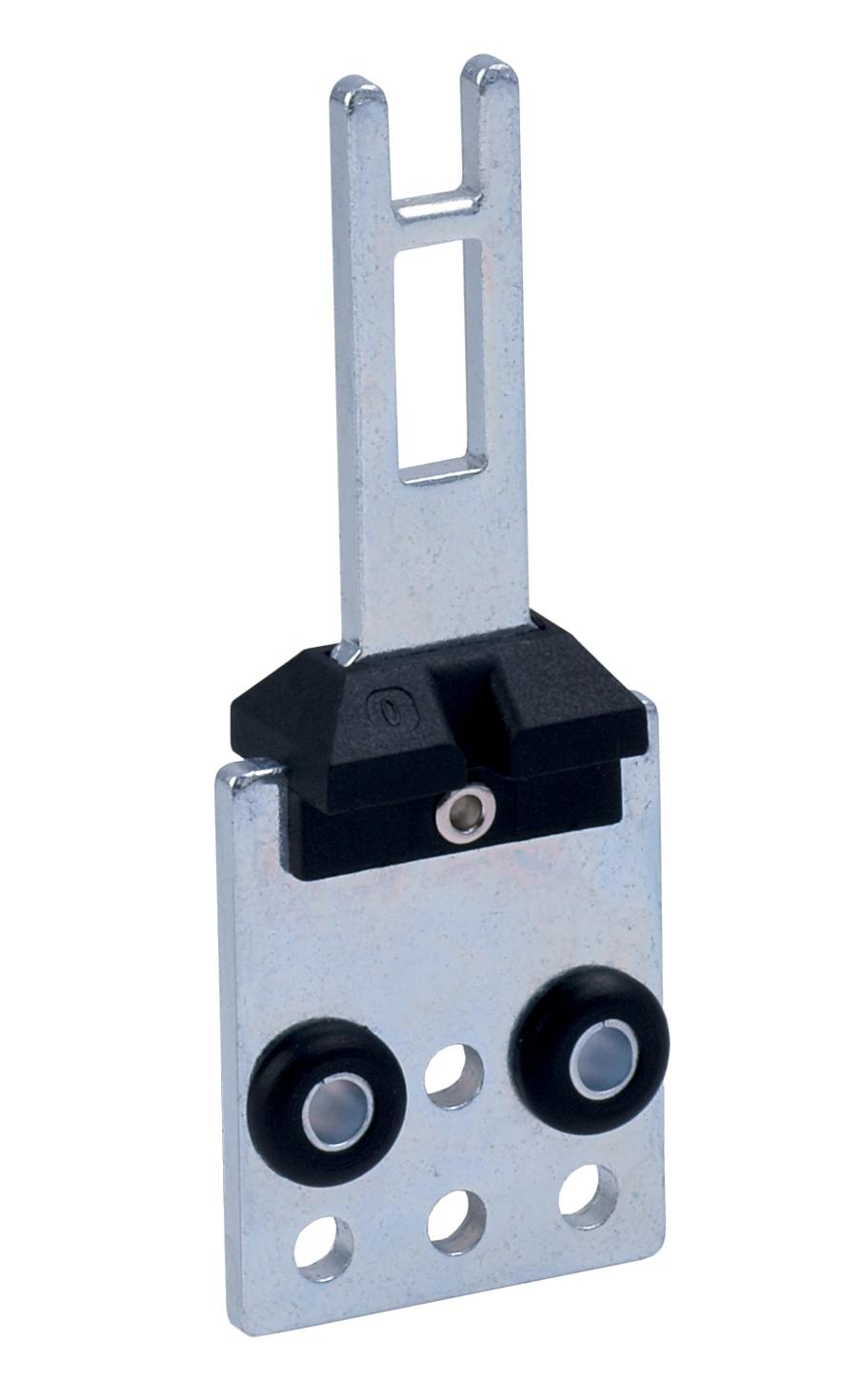

Enhance your machine safety with the Schmersal AZ3350 series safety switch. This robust straight actuator features a rigid design complemented by rubber mounting for reliable performance. With an actuating radius of 400 mm, it's engineered to meet the demanding requirements of industrial safety applications. Trust in the quality and precision that Schmersal brings to your machinery's protection systems.

Technical Specifications

eCl@ss Number, Version 11.0 27-37-12-12
eCl@ss Number, Version 9.0 27-37-12-19
ETIM 6.0 EC002591
ETIM 7.0 EC000041
Gross Weight (g) 342
Maximum Temperature (°C) 90
Minimum Ambient Temperature (°C) -30
Minimum Temperature (°C) -30
Net Weight (g) 339
Sensor Height (mm) 95.5
Sensor Length (mm) 50
Utilisation Category AC-15 240 VAC
Utilisation Category DC-13 24 VDC
Brand SCHMERSAL
Degree of Protection IP67
EAN 4030660000000
Enclosure Material Plastic, glass-fibre-reinforced
Maximum Ambient Temperature (°C) 60
Minimum Mechanical Life 10000000 Operations
Series AZ3350
Standards EN IEC 60947-5-1 / EN ISO 13849-1 / BG-GS-ET-15
Terminal Type Screw terminals M20 x 1.5
