Products

Presence Sensing Safety Devices

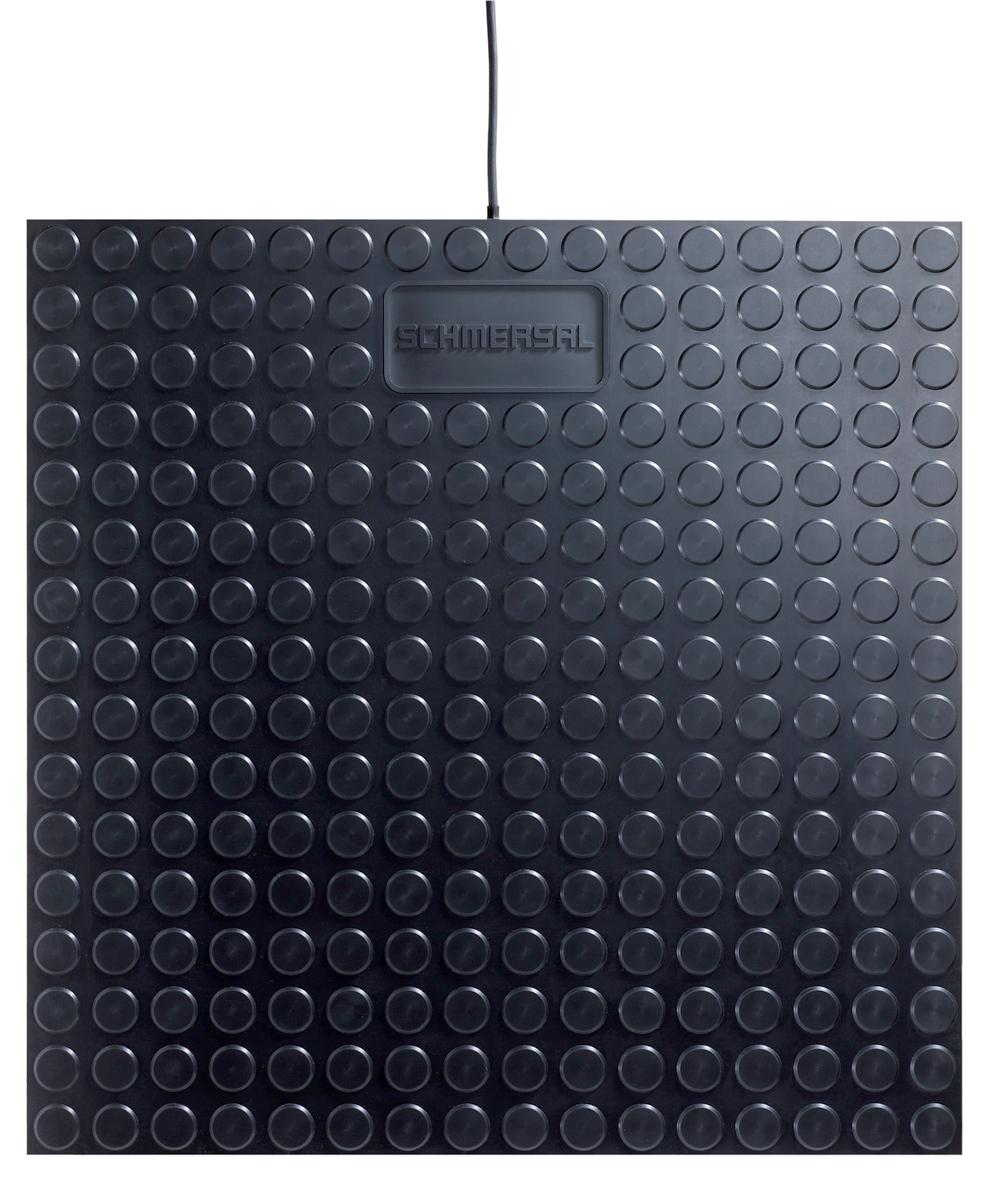

SCHMERSAL SMS4-500-1000 SAFETY-RELATED TACTILE SENSOR 101208367

Product Code: 101208367

Enhance your machine safety with the Schmersal SMS4 Series Safety-related tactile sensor. This robustly designed sensor ensures secure operation with its slip-free surface and simple mounting process that eliminates the need for an additional baseplate. With dimensions of 1,000mm in length, 500mm in width, and a slim profile of just 14mm in height, it's engineered for seamless integration into your safety systems. The unit is also cascadable, allowing for straightforward expansion. It comes equipped with a 6-meter cable for easy terminal connection, streamlining installation and maintenance tasks. Trust Schmersal's expertise for reliable machine safety solutions.

Technical Specifications

Brand SCHMERSAL
eCl@ss Number, Version 11.0 27-27-26-01
eCl@ss Number, Version 9.0 27-27-26-01
ETIM 6.0 EC000030
ETIM 7.0 EC000030
Gross Weight (g) 280
Maximum Fuse Rating 6 A gG D-fuse
Maximum Temperature (°C) 60
Minimum Ambient Temperature (°C) -10
Minimum Temperature (°C) 0
Net Weight (g) 300
Sensor Height (mm) 106.5
Sensor Length (mm) 63
Utilisation Category AC-15 240 VAC
Utilisation Category DC-13 24 VDC
Contact Material Silver
Degree of Protection IP65
EAN 4030660000000
Enclosure Material Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
Maximum Ambient Temperature (°C) 80
Minimum Mechanical Life 20000000 Operations
Series SMS4
Standards EN IEC 60947-5-1
Terminal Type Cable
