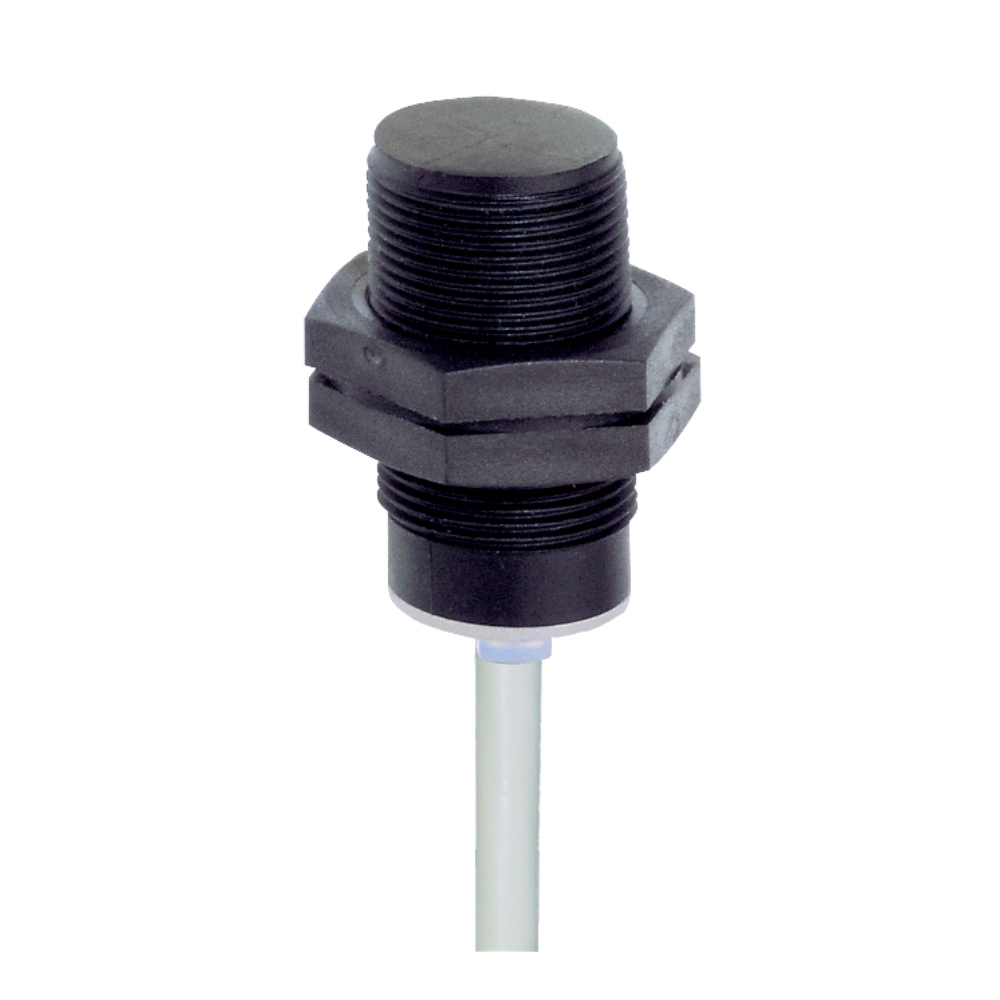

Schmersal 101208353 Magnetic Safety Sensor 10m Cable

Product Code: 101208353

  • Operates at 120 VAC, 0.25 A, and 5 W
  • Durable with 25 million cycle lifespan
  • IP67 rated for robust protection
  • Quasi-flush mount design for easy install
  • Withstands temp from -25 to 70°C
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Safety Sensor
Brand SCHMERSAL
Series EX-BNS
Actuating Element Magnet
Cable Length 10 m
Degree of Protection IP67
Housing Material Glass Fibre Reinforced Thermoplastic
Mechanical Life 25000000 Cycles
Mounting Type Quasi-Flush
Operational Temperature -25 to 70 deg C
Rated Current 0.25 A
Rated Frequency 5 Hz
Rated Power 5 W
Rated Voltage 120 VAC
Sensor Size 36 mm L
Shock Resistance 30 g/ms
Standards and Approvals EN IEC 60079-0 EN IEC 60079-15 EN 60079-31
Vibration Resistance 10-55 Hz
Wire Size 0.25 sq-mm

Description

<p>When selecting a product for industrial and commercial applications, it&amp;#39;s essential to focus on reliability and performance. This particular product delivers on both fronts with its robust specifications. Operating at a rated voltage of 120 VAC and a current of 0.25 A, it provides a rated power output of 5 W, making it suitable for various low-power applications.</p><p>The product&amp;#39;s mechanical life is impressive, boasting up to 25 million cycles. This ensures long-term durability in demanding environments, reducing the need for frequent replacements and maintenance downtime. Its quasi-flush mounting type allows for easy installation while maintaining a sleek profile.</p><p>Constructed from glass fibre reinforced thermoplastic, the housing material offers excellent resistance against environmental stressors. With an IP67 degree of protection, this device is dust-tight and can withstand immersion in water up to 1 meter deep, safeguarding its internal components from potential damage.</p><p>Designed for versatility across different conditions, it operates efficiently within temperatures ranging from -25 to 70 degrees Celsius. This broad operational temperature range makes it adaptable to both cold storage facilities and high-temperature industrial settings.</p><p>The sensor size measures at a compact 36 mm length, allowing integration into systems where space is limited without compromising functionality. The actuating element is magnet-based, ensuring reliable activation without direct contact—a feature that enhances safety by minimizing wear over time.</p><p>For connectivity needs, the product comes equipped with a generous 10-meter cable length featuring wire sizes of 0.25 sq-mm. This facilitates flexible installations across varied distances within your setup while maintaining signal integrity.</p><p>Meeting rigorous standards such as EN IEC 60079-0, EN IEC 60079-15, and EN 60079-31 underscores its compliance with international safety norms related to explosive atmospheres—making it suitable for use in potentially hazardous locations where stringent safety requirements are paramount.</p><p>In terms of resilience against physical forces encountered during operations or transportations like shocks or vibrations—the device stands firm with shock resistance rated at 30 g/ms coupled with vibration resistance spanning frequencies between10-55 Hz; attributes that further extend its lifespan by absorbing mechanical stresses effectively.</p><p>Overall this product presents itself as an ideal choice when seeking dependable performance amidst challenging conditions—its technical prowess backed by adherence to global standards ensures peace-of-mind operation wherever deployed.</p>
