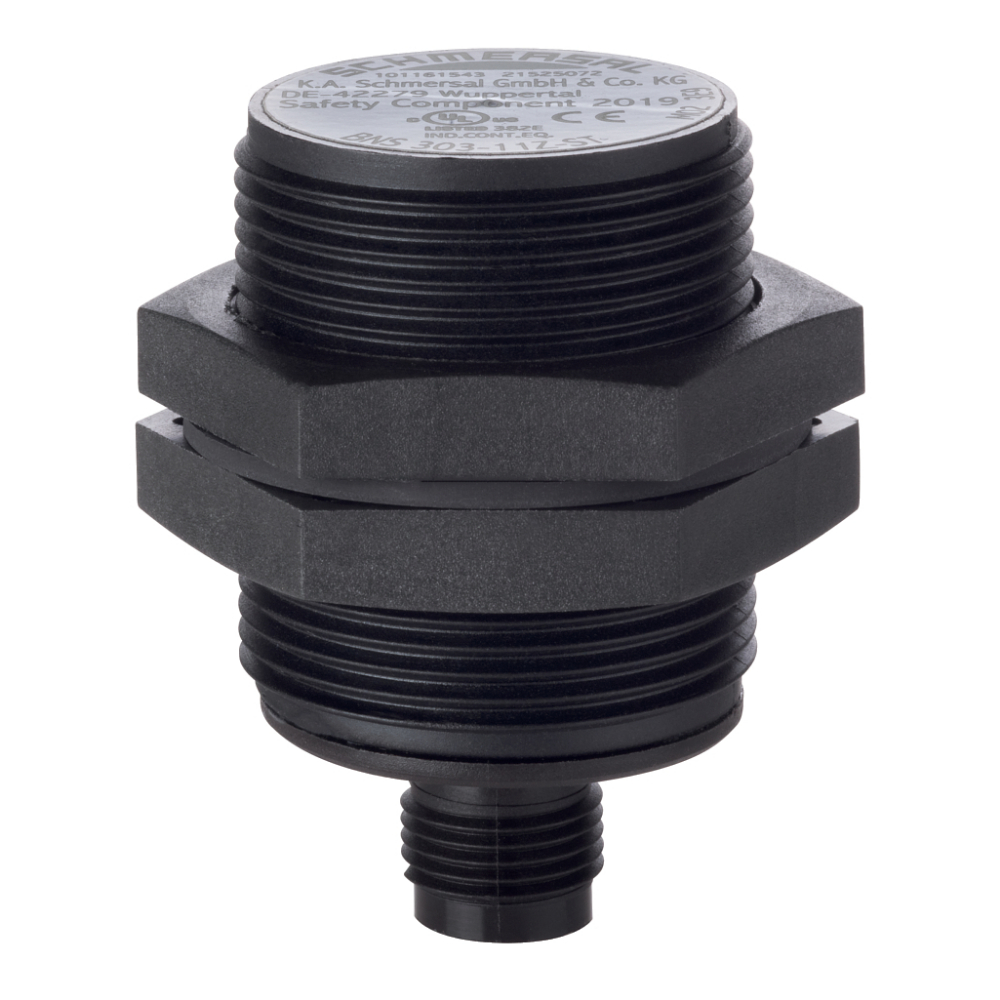

Schmersal 101208000 Magnetic Safety Sensor

Product Code: 101208000

  • Quasi-flush mounting for easy installation
  • Durable with 25 million cycles lifespan
  • IP67 rated for superior protection
  • Operates in -25 to 70°C temperature range
  • Glass fibre reinforced thermoplastic housing
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Safety Sensor
Brand SCHMERSAL
Series BNS303
Actuating Element Magnet
Degree of Protection IP67
Housing Material Glass Fibre Reinforced Thermoplastic
Mechanical Life 25000000 Cycles
Mounting Type Quasi-Flush
Number of Poles 4
Operational Temperature -25 to 70 deg C
Rated Current 0.4 A
Rated Frequency 5 Hz
Rated Power 10 W
Rated Voltage 100 VAC
Sensor Size 44 mm L
Standards and Approvals BG-GS-ET-14 EN IEC 60947-5-3
Vibration Resistance 10-55 Hz

Description

<p>When you&amp;#39;re in the market for a reliable and robust industrial component, certain specifications can make all the difference. This product is crafted to meet demanding environments with its impressive technical attributes. Operating at a rated voltage of 100 VAC and a current of 0.4 A, it delivers a power output of 10 W, making it suitable for various applications requiring moderate power levels.</p><p>One standout feature is its remarkable mechanical life, boasting up to 25 million cycles. This ensures longevity and reliability in operations where frequent actuation is required. The quasi-flush mounting type offers ease of installation while maintaining a sleek profile that doesn&amp;#39;t disrupt existing setups.</p><p>Constructed from glass fibre reinforced thermoplastic, this product&amp;#39;s housing material provides excellent durability and resistance to harsh conditions. It carries an IP67 degree of protection rating, ensuring total dust ingress protection and safeguarding against temporary immersion in water—ideal for challenging industrial settings.</p><p>Functionality across diverse environments is further supported by its operational temperature range from -25 to 70 degrees Celsius. Whether you&amp;#39;re dealing with cold storage or high-temperature processes, this product maintains performance integrity across these extremes.</p><p>Compliance with standards such as BG-GS-ET-14 and EN IEC 60947-5-3 underscores its adherence to rigorous safety and quality benchmarks—an essential consideration for any professional seeking dependable equipment.</p><p>The actuating element employs a magnet mechanism which enhances precision in detection tasks while minimizing wear over time—a critical aspect when accuracy cannot be compromised. With sensor dimensions measuring at 44 mm lengthwise, it balances compactness with sufficient size for effective operation within confined spaces if needed.</p><p>Additionally, the vibration resistance ranging from 10 to 55 Hz ensures stability even amidst dynamic or vibrating machinery environments—vital for maintaining consistent performance without interruption or degradation due to external movements.</p><p>This combination of features makes this product an excellent choice for those needing dependable performance without unnecessary complexity. It&amp;#39;s engineered not just to meet but exceed expectations within varied commercial and industrial applications where reliability counts above all else.</p>
