Product Code: 101207743

Enhance your machine safety with the Schmersal KA Series Safety Light Curtains, featuring a robust pre-wired cable designed specifically for transmitters. This durable cable comes with four poles and an equal number of wires, ensuring a reliable connection with its screw terminal connector. At 20 meters in length and capable of handling up to 250 V, this cable supports a contact load capacity of 4. Ideal for integrating into your safety systems, the Schmersal brand guarantees quality and reliability in safeguarding your machinery operations.

eCl@ss Number, Version 11.0	27-27-06-01
eCl@ss Number, Version 9.0	27-27-26-01
ETIM 6.0	EC000030
ETIM 7.0	EC000030
Gross Weight (g)	195
Maximum Fuse Rating	6 A gG D-fuse
Maximum Temperature (°C)	90/80
Minimum Ambient Temperature (°C)	-30
Minimum Temperature (°C)	-30/-40
Net Weight (g)	164.539
Rated Maximum Operational Voltage DC (V)	250
Sensor Height (mm)	75
Sensor Length (mm)	149
Switching Element	Opener (NC)
Utilisation Category AC-15	230 VAC
Utilisation Category DC-13	24 VDC
Brand	SCHMERSAL
Contact Material	Silver
Degree of Protection	IP67
EAN	4030660000000
Enclosure Material	Grey cast iron, galvanised
Maximum Ambient Temperature (°C)	80
Maximum Cable Cross Section (mm²)	1.5
Minimum Mechanical Life	20000000 Operations
No. of Poles	4
Series	KA
Standards	EN IEC 60947-5-1
Terminal Type	Screw terminals

Presence Sensing Safety Devices

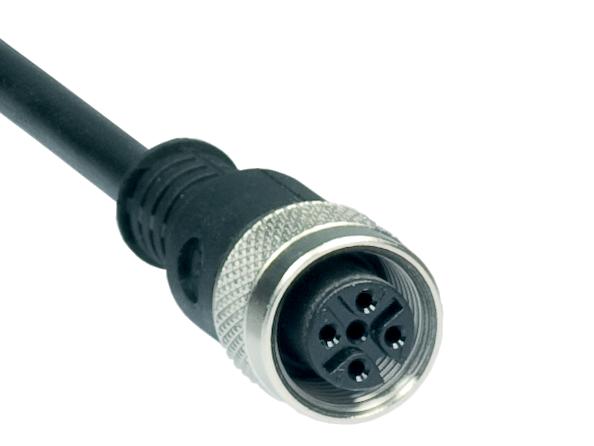

SCHMERSAL KA-0808 CONNECTOR 101207743
