Brand	SCHMERSAL
eCl@ss Number, Version 11.0	27-27-06-01
eCl@ss Number, Version 9.0	27-27-26-01
ETIM 6.0	EC000030
ETIM 7.0	EC000030
Gross Weight (g)	30
Maximum Fuse Rating	6 A gG D-fuse quick blow
Minimum Ambient Temperature (°C)	-25
Net Weight (g)	29
Sensor Height (mm)	95
Sensor Length (mm)	30
Switching Element	NO contact, NC contact
Switching Principle	Snap action
Thermal Test Current (A)	0.25
Utilisation Category AC-15	250 VAC
Utilisation Category DC-13	24 VDC
Contact Material	Silver
Degree of Protection	IP67
EAN	4030660000000
Enclosure Material	Plastic, glass-fibre-reinforced
Maximum Ambient Temperature (°C)	50
Maximum Cable Cross Section (mm²)	2.5 , flexible
Minimum Cable Cross Section (mm²)	0.25
Minimum Mechanical Life	10000000 Operations
Rated Impulse Withstand Voltage (kV)	4
Rated Insulation Voltage (V)	250
Standards	EN IEC 60947-5-2 / DIN VDE 0660-208
Terminal Type	Screw terminals M20 x 1.5

Presence Sensing Safety Devices

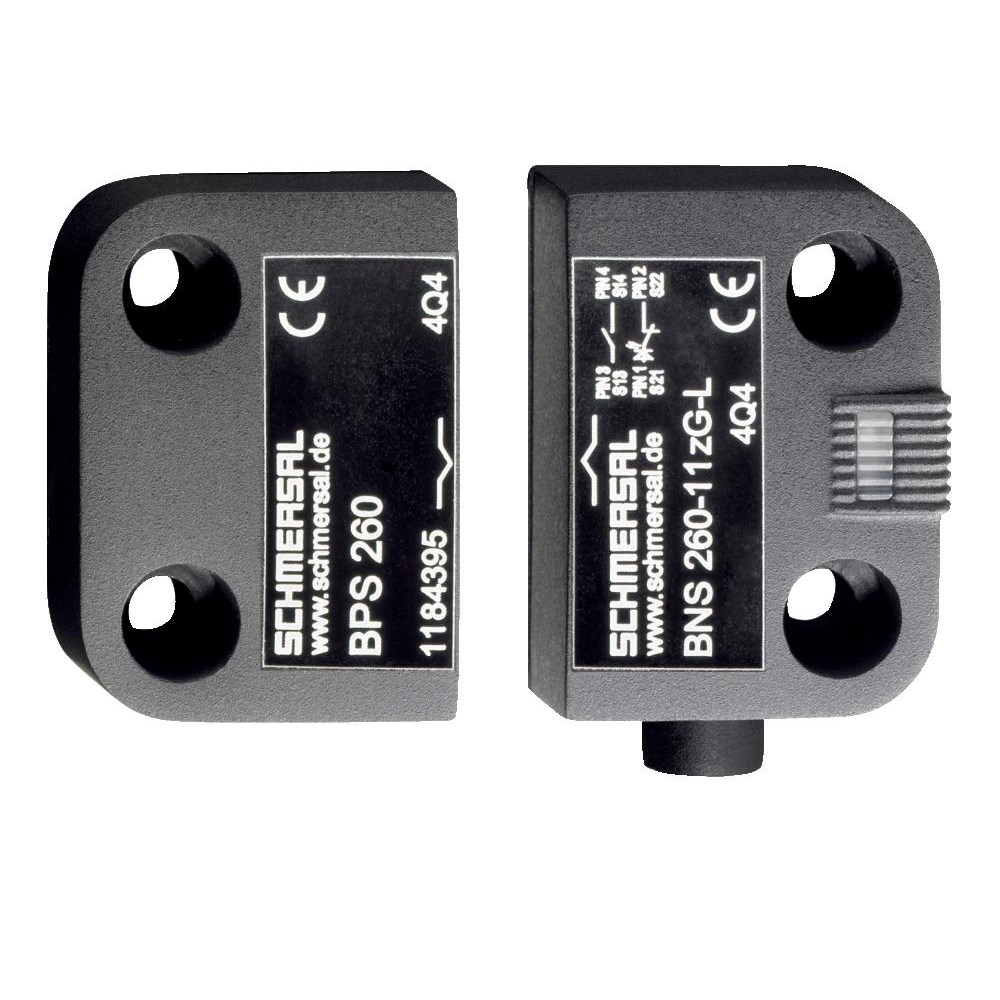

SCHMERSAL MAGNETIC SAFETY SENSOR 101195758
