Product Code: 101194921

Enhance machine safety with the Schmersal BNS36 series safety switchgear. This robust device features a thermoplastic enclosure and is equipped with an integrated AS-Interface for seamless integration into your safety network. It boasts coding capabilities and integral system diagnostics to ensure reliable operation. Designed with a left door hinge orientation, it includes a magnet as the actuating element. The unit connects via a 2-pole connecting cable, 2 meters in length, ensuring flexible installation options. Operating efficiently on 18-31.6 VDC with a minimal current consumption of 50 mA, this safety sensor is an essential component for any machine safety system.

Brand	SCHMERSAL
eCl@ss Number, Version 11.0	27-27-26-01
eCl@ss Number, Version 9.0	27-27-06-01
ETIM 6.0	EC000030
ETIM 7.0	EC000030
Gross Weight (g)	120
Maximum Fuse Rating	6 A gG D-fuse
Maximum Temperature (°C)	60
Minimum Ambient Temperature (°C)	-30
Minimum Temperature (°C)	-25
Net Weight (g)	155
No. of Safety Contacts	2
Sensor Height (mm)	102.6
Sensor Length (mm)	34.4
Switching Element	NO contact, NC contact
Switching Principle	Slow action
Utilisation Category AC-15	230 VAC
Utilisation Category DC-13	200 VDC
Contact Material	Silver
Degree of Protection	IP67
EAN	4030660000000
Enclosure Material	Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
Maximum Ambient Temperature (°C)	70
Maximum Cable Cross Section (mm²)	2.5
Minimum Cable Cross Section (mm²)	0.75
Minimum Mechanical Life	10000000 Operations
Rated Impulse Withstand Voltage (kV)	6
Rated Insulation Voltage (V)	500
Series	BNS36
Standards	EN IEC 60947-5-1 / EN IEC 60947-1
Terminal Type	Connector plug M12, 4-pole, (A-coding) \| Connector plug M12, 8-pole, (A-coding)

Presence Sensing Safety Devices

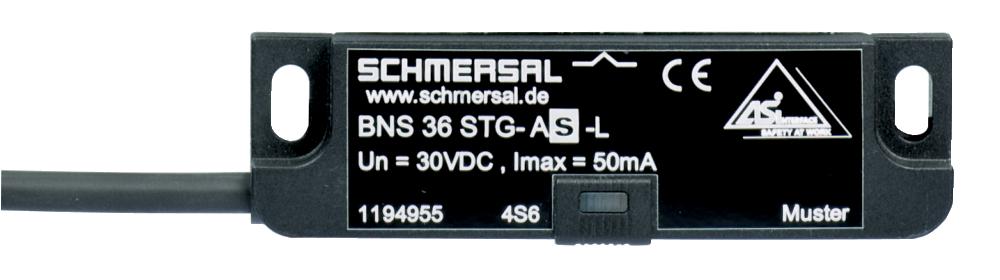

SCHMERSAL BNS36-AS-L SAFETY SENSOR 101194921

Product Code: 101194921
