Brand	SCHMERSAL
eCl@ss Number, Version 11.0	27-27-06-01
eCl@ss Number, Version 9.0	27-27-06-01
ETIM 6.0	EC000030
ETIM 7.0	EC000030
Gross Weight (g)	20
Maximum Fuse Rating	6 A gG D-fuse
Minimum Ambient Temperature (°C)	-25
Net Weight (g)	260
No. of Safety Contacts	2
Sensor Height (mm)	118.5
Sensor Length (mm)	30
Switching Element	NO contact, NC contact
Switching Principle	Slow action
Utilisation Category AC-15	230 VAC
Utilisation Category DC-13	200 VDC
Contact Material	Silver
Degree of Protection	IP67 / IP65
EAN	4030660000000
Enclosure Material	Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
Maximum Ambient Temperature (°C)	70
Maximum Cable Cross Section (mm²)	2.5
Minimum Cable Cross Section (mm²)	0.2
Minimum Mechanical Life	10000000 Operations
Rated Impulse Withstand Voltage (kV)	0.8
Rated Insulation Voltage (V)	250
Standards	EN IEC 60947-5-1 / EN IEC 60204-1 / EN IEC 60947-5-3 / EN IEC 62061 / EN ISO 14119 / EN IEC 60947-5-5 / EN IEC 60947-1
Terminal Type	Cable

Presence Sensing Safety Devices

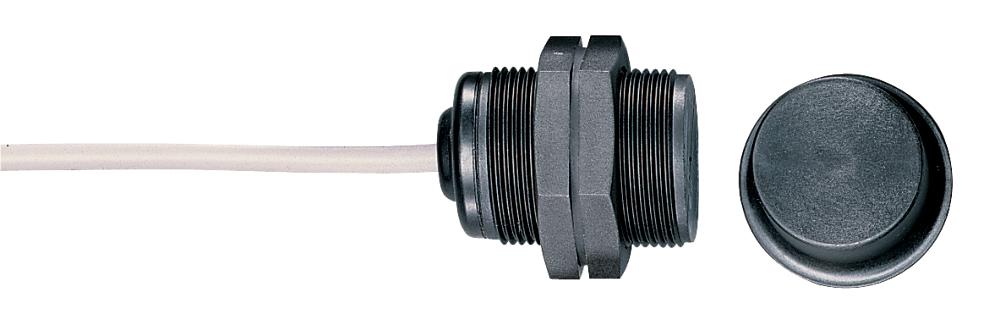

SCHMERSAL SAFETY SENSOR 1 NO/1 NC CONTACTS 101194346
