Product Code: 101193156

Enhance your machine safety with the Schmersal BNS36 series safety sensor. This robust device features a durable thermoplastic enclosure and is equipped with a magnetic actuating element for reliable operation. Designed for left-hinged doors, it includes two openers and two safety contacts to ensure secure interlocking with a connector 8 mm 6-pole terminal. With a switching voltage of 75 VDC, current of 0.4 A, and capacity of 10 W, this sensor ensures precise performance in safeguarding equipment. Ideal for engineers seeking efficient coding and safety integration in their machinery setups.

eCl@ss Number, Version 11.0	27-27-06-01
eCl@ss Number, Version 9.0	27-27-06-01
ETIM 6.0	EC000030
ETIM 7.0	EC000030
Gross Weight (g)	20
Maximum Fuse Rating	4 A gG D-fuse to DIN EN 60269-1
Maximum Temperature (°C)	70
Minimum Ambient Temperature (°C)	-30
Minimum Temperature (°C)	-25
Net Weight (g)	20
No. of Safety Contacts	2
Nominal Output Current (A)	0.4
Nominal Power (W)	10
Rated Maximum Operational Voltage DC (V)	75
Sensor Height (mm)	90
Sensor Length (mm)	30
Switching Element	Opener (NC)
Switching Principle	Slow action
Utilisation Category AC-15	230 VAC
Utilisation Category DC-13	24 VDC
Brand	SCHMERSAL
Contact Material	Silver
Degree of Protection	IP67
EAN	4030660000000
Enclosure Material	Light alloy die-casting
Maximum Ambient Temperature (°C)	75
Maximum Cable Cross Section (mm²)	2.5
Minimum Cable Cross Section (mm²)	1.5
Minimum Mechanical Life	10000000 Operations
Rated Impulse Withstand Voltage (kV)	4
Rated Insulation Voltage (V)	300
Series	BNS36
Standards	EN IEC 60947-5-1 / EN ISO 13849-1 / BG-GS-ET-15
Terminal Type	Connector plug M12, 4-pole, (A-coding) \| Connector plug M12, 4-pole, (B-coding)

Presence Sensing Safety Devices

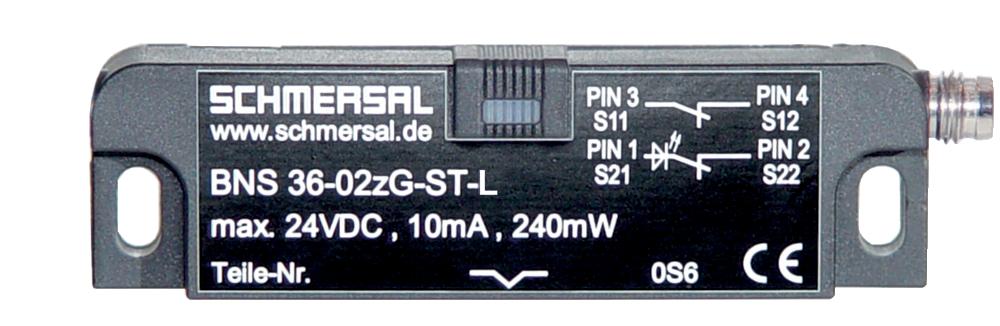

SCHMERSAL BNS36-02Z-ST-L SAFETY SENSOR 101193156
