Product Code: 101192480

Explore the Schmersal TQ 700 series pull-wire switch, a robust solution for position sensing in industrial environments. This switch features a durable thermoplastic enclosure and is equipped with two opener (NC) switching elements, ensuring reliable operation. The device includes a creep circuit element and offers secure screw connection terminals. Designed to handle 4 A at 230 VAC under AC-15 utilization category and 4 A at 24 VDC under DC-13, it meets diverse electrical requirements. With an M20 x 1.5 cable entry, it operates effectively within a temperature range of -25°C to +70°C. Certified with an IP67 rating, this pull-wire switch guarantees protection against dust and water ingress, making it suitable for challenging conditions.

eCl@ss Number, Version 11.0	27-27-26-01
eCl@ss Number, Version 9.0	27-27-26-06
ETIM 6.0	EC000030
ETIM 7.0	EC000030
Gross Weight (g)	85.44
Maximum Actuating Speed (m/s)	0.2
Maximum Fuse Rating	6 A gG D-fuse to DIN EN 60269-1
Maximum Temperature (°C)	70
Minimum Ambient Temperature (°C)	-30
Minimum Temperature (°C)	-25
Net Weight (g)	78
No. of Safety Contacts	1
Sensor Height (mm)	85
Sensor Length (mm)	13
Switching Element	NC contact, NO contact
Switching Principle	Slow action
Utilisation Category AC-15	230 VAC
Utilisation Category DC-13	200 VDC
Brand	SCHMERSAL
Contact Material	Silver
Degree of Protection	IP67
EAN	4030660000000
Enclosure Material	Metal, zinc die-cast
Maximum Ambient Temperature (°C)	80
Maximum Cable Cross Section (mm²)	2.5
Minimum Cable Cross Section (mm²)	1.5
Minimum Mechanical Life	300000 Operations
Rated Impulse Withstand Voltage (kV)	4
Rated Insulation Voltage (V)	250
Series	TQ 700
Standards	EN IEC 60947-5-1 / EN ISO 13849-1 / BG-GS-ET-15
Terminal Type	Screw terminals M20 x 1.5

Position Switches & Sensors

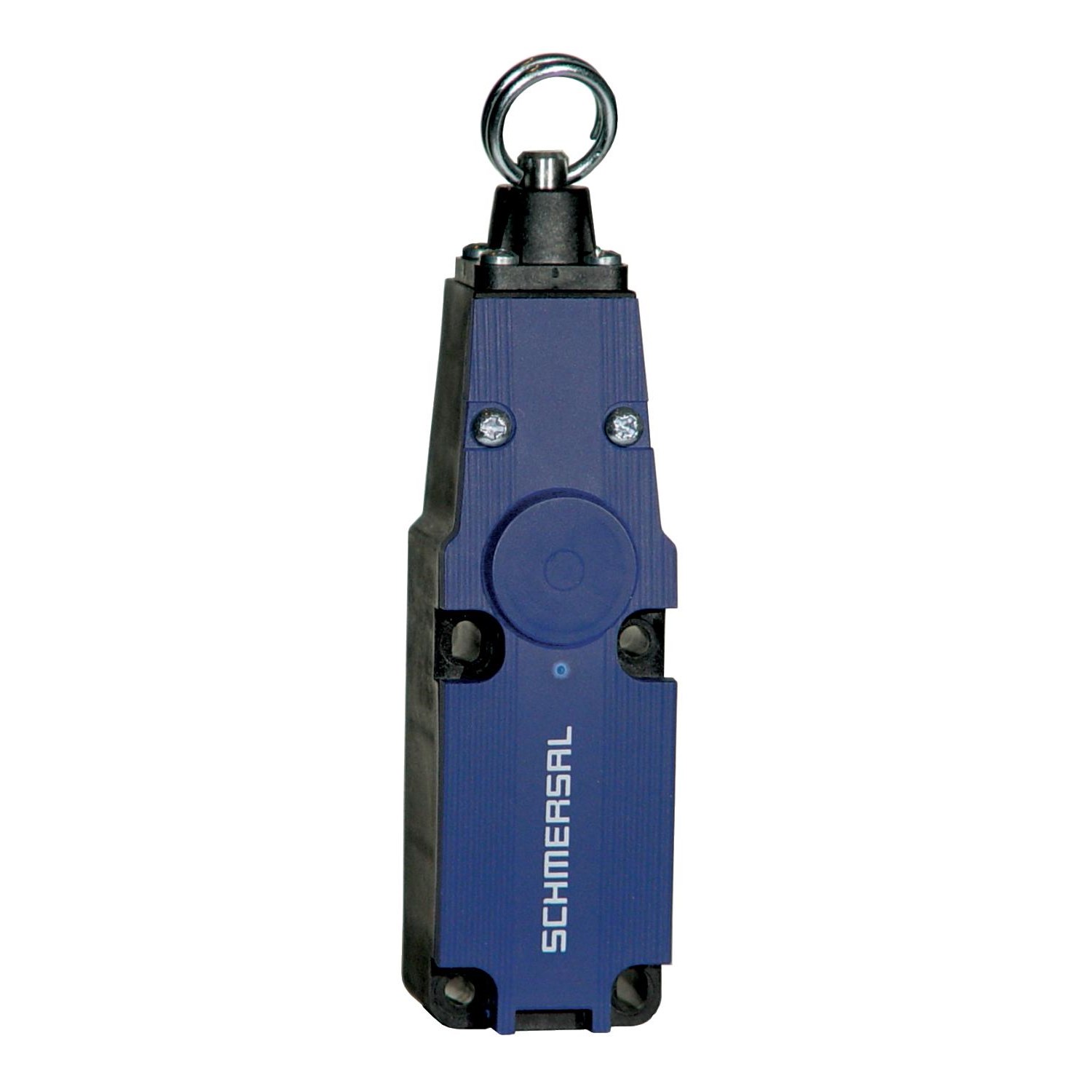

SCHMERSAL TQ 700-02 PULL-WIRE SWITCH 101192480
