Product Code: 101192478

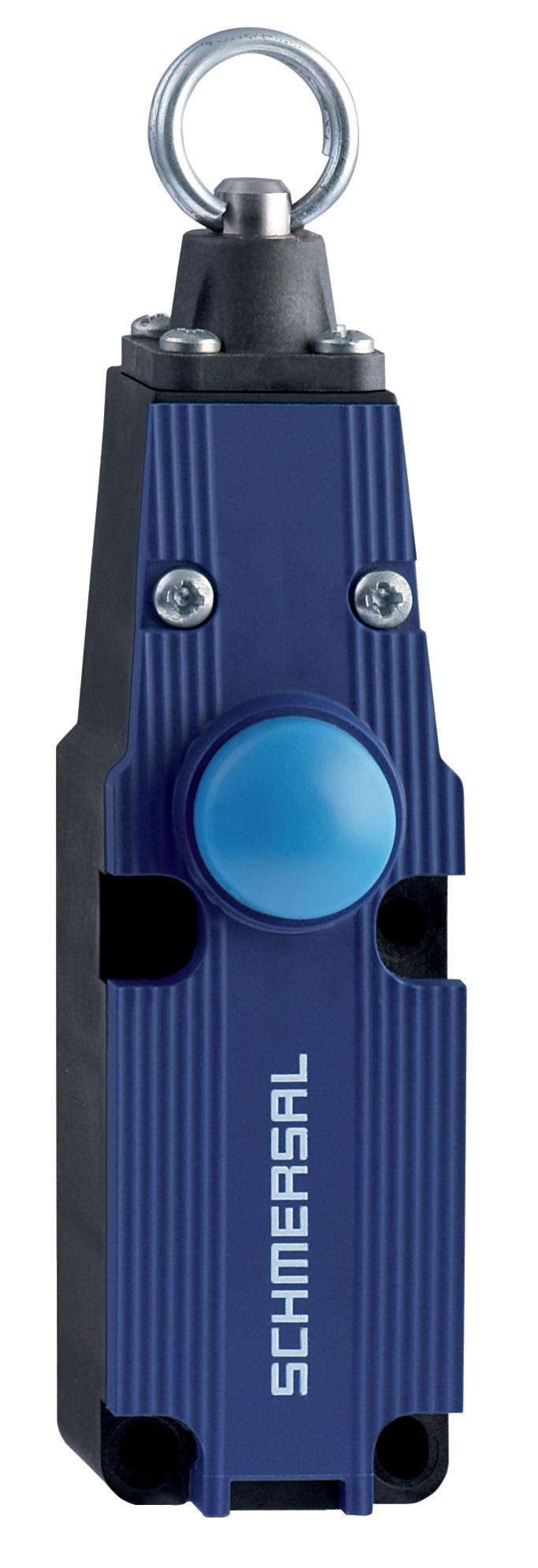

Ensure machine safety with the Schmersal ZQ Series Pull-wire Emergency Stop Switch. This robust device features a thermoplastic enclosure designed for industrial environments and is equipped with a reliable opener (NC) switching element that provides snap action for immediate response. With two safety contacts and no auxiliary contacts, it ensures secure operations. The switch offers easy installation with its screw connection terminal connector. It's rated for a thermal test current of 10 A and can handle up to 230 VAC in AC-15 utilization category or 24 VDC in DC-13 utilization category, both at 4 A. Ideal for integrating into your machine safety systems, this pull-wire E-stop is an essential component for any safety-conscious engineering project.

eCl@ss Number, Version 11.0	27-27-26-01
eCl@ss Number, Version 9.0	27-27-26-01
ETIM 6.0	EC000030
ETIM 7.0	EC000030
Gross Weight (g)	99.97
Maximum Actuating Speed (m/s)	0.2
Maximum Fuse Rating	6 A gG D-fuse to DIN EN 60269-1
Maximum Temperature (°C)	70
Minimum Ambient Temperature (°C)	-30
Minimum Temperature (°C)	-25
Net Weight (g)	135.1
No. of Safety Contacts	1
Sensor Height (mm)	85
Sensor Length (mm)	13
Switching Element	Opener (NC)
Switching Principle	Slow action
Utilisation Category AC-15	230 VAC
Utilisation Category DC-13	24 VDC
Brand	SCHMERSAL
Contact Material	Silver
Degree of Protection	IP65
EAN	4030660000000
Enclosure Material	Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
Maximum Ambient Temperature (°C)	80
Maximum Cable Cross Section (mm²)	2.5
Minimum Cable Cross Section (mm²)	0.25
Minimum Mechanical Life	30000000 Operations
Rated Impulse Withstand Voltage (kV)	4
Rated Insulation Voltage (V)	250
Series	ZQ
Standards	EN IEC 60947-5-1 / EN ISO 13849-1 / BG-GS-ET-15
Terminal Type	Screw terminals
